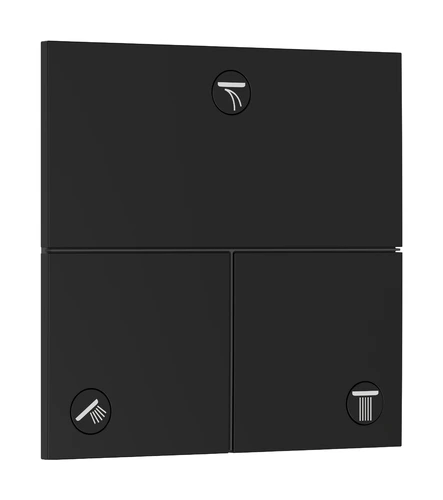

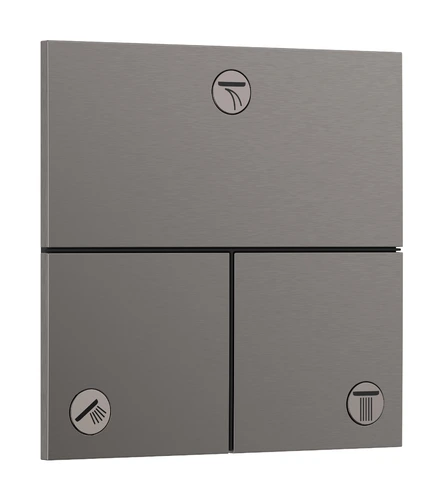

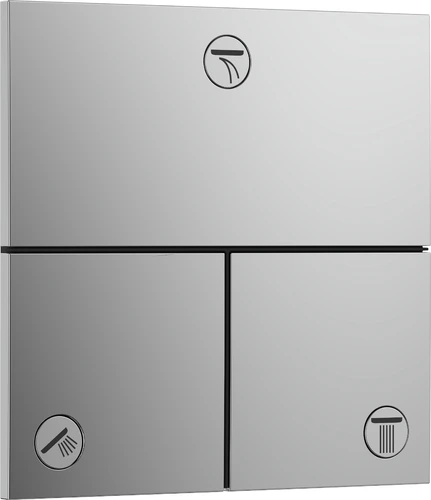

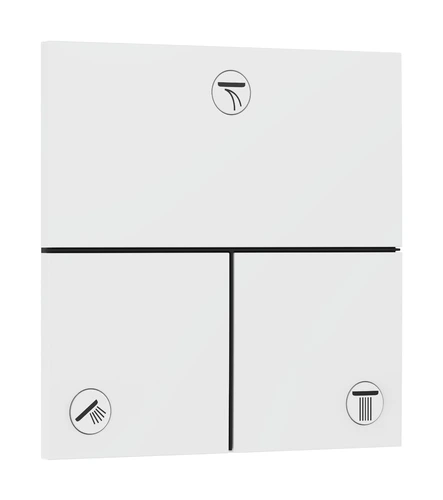

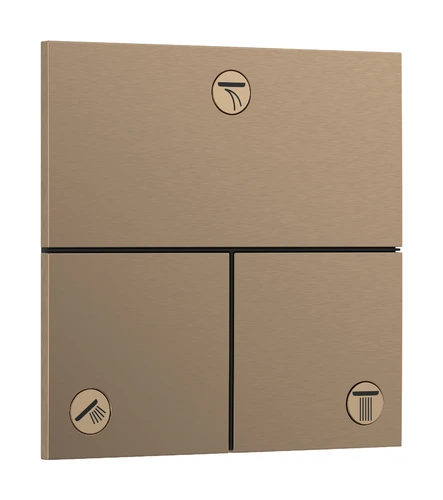

hansgrohe ShowerSelect Comfort E valve, concealed, 3 consumers, square rosette

• hansgrohe ShowerSelect Comfort E
• 1 x concealed valve

Product details:

• for three consumers
• Start/stop valve for operating the consumers
• large Select buttons: convenient on/off switching of the consumers
• Simultaneous use of several consumers
• Flat rosette - more space in the shower
• angular rosette can be subsequently adjusted by +/- 3
• Pre-assembled function block - easy installation
• Valve is supplied with Rain small and large buttons
• as well as with the hand shower, splash and bath buttons

Technical data:

• Connection type: iBox universal 2 main body (item no.: 01500180)
• Basic body not included, please order separately.
• Max. flow rate at 3 bar: 32 l/min.
• flow rate upper outlet: 26 l/min.
• flow rate left and right: 26 l/min.
• min. Operating pressure: 1 bar
• max. operating pressure: 10 bar
• Noise group: I
• flow rate class: A

Scope of delivery:

• Thermostat, function block
• Fastening material and installation instructions
