TECEdrainprofile drain, standard, DN50, lateral outlet
- Item No. 673002
- Further information
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
Customers also bought
Further information
Product information
- TECEdrainprofile
- 1 x drain norm
Product details

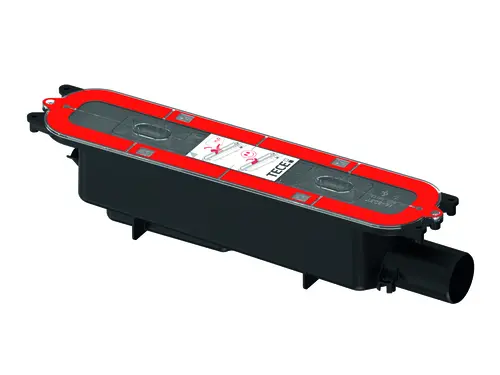

- Drain for TECEdrainprofile shower profiles
- for installation in screed
- lateral connection to DN50 waste water pipe
- factory-fixed and clickable Seal System sealing sleeve
- DIN 18534 compliant connection to the bonded waterproofing

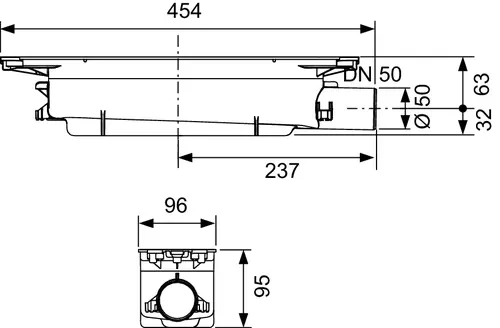

- min. Installation height 95 mm (lower edge of drain to upper edge of screed)
- Drainage capacity ≥0.7/≥0.8 l/s (according to EN 1253 with 10/20 mm backwater above profile cover)
- Water trap height 50 mm
- Removable odor trap
- Integrated screed anchoring
- Factory-fixed, clickable and flexible sealing sleeve with Seal System
- Matching prefabricated sound insulation strip
- Building protection cover
- Sliding/movable seal for connection with TECEdrainprofile shower profile and
- to compensate for construction tolerances
Ordering information - please order separately:
Wall and floor mounting brackets or mounting feet and sound insulation mat Drainbase (optional)
