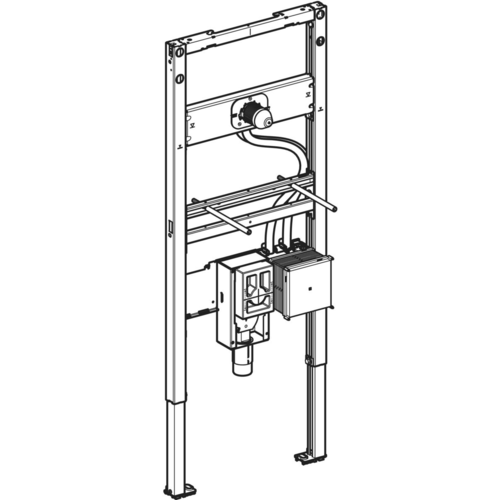

Geberit Duofix element, for washbasins, 130cm, for electronic wall-mounted tap, with concealed function box, with concealed odour trap

• Geberit Duofix
• 1 x element for washbasins, 130cm
• for electronic wall-mounted tap
• with flush-mounted function box and with flush-mounted odour trap

Intended use

• for metal and wooden stud walls, for floor structures 0-25 cm
• for Geberit Duofix system walls
• For installation in part or full-height pre-walls and in full-height partition walls
• Suitable for barrier-free construction
• for the installation of washbasins
• for Piave and Brenta washbasin fittings, wall-mounted, for concealed function box

Product details

• statically self-supporting frame, corrosion-protected thanks to powder coating
• with pull-out plate for lateral fastening above the element on metal or wooden profiles or on Geberit Duofix system stands
• Alternative fixing position for wall anchors
• swivelling foot plates, suitable for installation in U-profiles UW 50 and 75
• Foot plates can be mounted in Geberit Duofix system rail without tools (without additional components)
• Galvanised, corrosion-protected foot supports, with slip resistance
• Fixing distance washbasins 5-38 cm
• Depth-adjustable threaded rods for fixing distance of 18 or 28 cm
• Height-adjustable crossbar for fittings
• Pre-assembled mounting for wall tap
• Flush-mounted odour trap with optimum flow control and high self-cleaning capacity
• Flush-mounted odour trap height-adjustable by ± 3 cm during final installation
• Wall installation box with connection pipe made of PP, ø 50 mm
• Water connection MasterFix- and MeplaFix-compatible
• Water connection to flush-mounted housing at the bottom
• Height-adjustable and sound-insulated fastening for connection elbow
• Flush-mounted housing for Geberit washbasin fitting, wall-mounted, for flush-mounted function box, pre-assembled
• Pre-assembled connecting pipes between concealed housing and attachment for wall-mounted tap
• Shut-off units integrated in flush-mounted housing
• Connection terminal for electrical connection in flush-mounted housing

Technical details

• Material: steel
• Dimensions (WxDxH): 50 x 7.4 x 130 cm

Scope of delivery

• Building protection, fixing material
• Building protection with cover, for flush-mounted housing
• Construction protection for wall-mounted fitting
