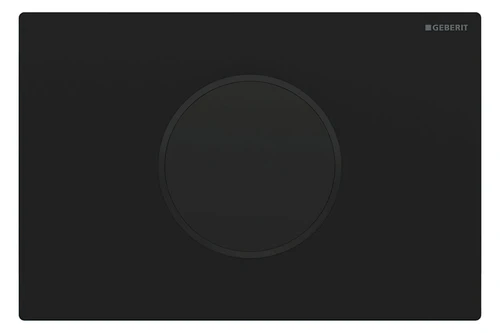

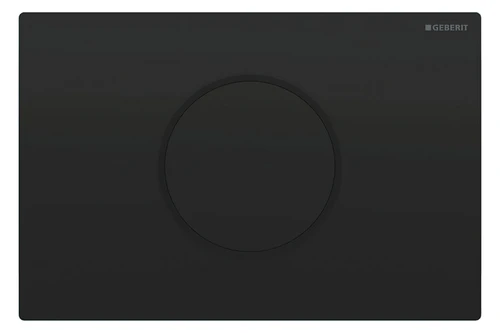

Geberit Sigma10 WC control with electric flush actuation, infrared-controlled, screwable

• Geberit Sigma10
• 1x WC control unit with electronic flush actuation
• Interval flush adjustable
• Preset interval flush
• Automatic flush actuation
• Contactless triggering of a 1-quantity or 2-quantity flush by approaching with the hand
• Flush triggering possible via external button
• Actuator plates can be screwed on
• Power supply via external power supply unit
• Transformation of the mains voltage to low voltage 12 V DC
• Operation with extra-low voltage, no mains voltage in the cistern
• With mix-up-proof plug connection
• Safe IR distance detection
• Adjustable pre-rinse
• Device settings and operation with mobile device via integrated Bluetooth® interface
• Compatible with Geberit Control App
• Can be wired networked with Geberit Gateway via bus converter
• Can be networked wirelessly with Geberit Gateway via Bluetooth® - Compatible with Geberit Connect
• Flush release can be deactivated
• Self-calibrating electric lifting device

Scope of delivery

• Sigma10 flush plates
• Mounting frame with infrared control, pre-assembled
• Protective plate
• Bearing bracket with servomotor and lifting device, pre-assembled
• Fixing material
