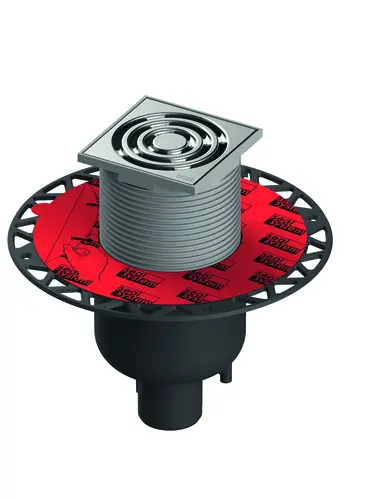

TECEdrainpoint S 130 drain set, vertical, with Seal System universal flange

• TECEdrainpoint S 130
• 1 x drain set
• vertical

Product details:

• Floor drain set vertical, DN 50
• tested according to EN 1253

consisting of:

• DN 50 vertical drain body, made of plastic (PP)
• with universal flange for connecting composite seals
• in accordance with DIN 18534 or clamping flange connections
• Removable odor trap
• Water trap height = 50 mm (in accordance with EN 1253)
• Top piece with grate frame made of plastic (ABS) and O-ring seal
• TECEdrainpoint S design grate made of drawn stainless steel
• Polished surface

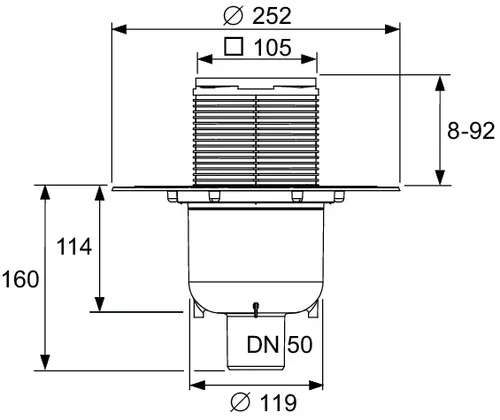

• Dimensions: 100 x 100 mm
• Load class K3 (loadable up to 300 kg)

Drainage capacity in accordance with EN 1253 at 10/20 mm back-up height above grate:

• at minimum height of the top section: 0.64/1.36 l/s
• at maximum height of the top section: 0.70/1.56 l/s

Note:

Delivery incl. construction period protection cover, construction period protection foil and installation instructions.

Required core drill hole: 120 mm diameter
