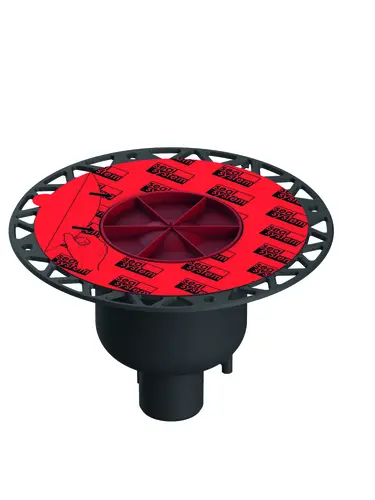

TECEdrainpoint S drain, vertical, with Seal System universal flange, DN 50

Item No. 3601600
Further information

RRP 53,67 €* 28,19 € **

Shipping index: 150 Points
incl. 19% VAT in addition

In stock²

by parcel service

- +

Recommended products

TECE sound insulation mat Drainbase for TECEdrainline and TECEdrainboard
In stock² 1 variant RRP 76,99 €* 40,06 €** You save 36,93 €

48%
TECEdrainpoint S tileable attachment, stainless steel, 100x100mm, frameless
In stock² 1 variant RRP 85,68 €* 48,37 €** You save 37,31 €

44%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, design plate
In stock² 1 variant RRP 135,30 €* 79,42 €** You save 55,88 €

41%
TECEdrainpoint S grate frame, plastic, 100x100mm, incl. design grate
In stock² 1 variant RRP 39,03 €* 19,99 €** You save 19,04 €

49%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate
In stock² 1 variant RRP 89,37 €* 47,36 €** You save 42,01 €

47%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate, screwable
In stock² 1 variant RRP 102,34 €* 28,13 €** You save 74,21 €

73%
TECEdrainpoint S grate frame, plastic, 100x100mm, incl. design grate and Seal System sealing sleeve
1-2 Weeks 1 variant RRP 75,21 €* 47,73 €** You save 27,48 €

37%
TECEdrainpoint S grate frame, plastic, 142x142mm, incl. design grate
In stock² 1 variant RRP 68,07 €* 31,81 €** You save 36,26 €

53%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate
In stock² 1 variant RRP 153,15 €* 71,47 €** You save 81,68 €

53%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate, screwable
In stock² 1 variant RRP 166,84 €* 91,43 € You save 79,98 €

48%
TECEdrainpoint S grate frame, plastic, 142x142mm, incl. design grate and Seal System sealing sleeve
1-2 Weeks 1 variant RRP 103,41 €* 56,68 €** You save 46,73 €

45%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate quadratum
1-2 Weeks 1 variant RRP 203,13 €* 106,92 €** You save 96,21 €

47%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate quadratum
In stock² 1 variant RRP 287,03 €* 201,23 €** You save 85,80 €

30%
TECEdrainpoint S grate frame, plastic, 100x100mm, without grate
1-2 Weeks 1 variant RRP 11,84 €* 6,69 €** You save 5,15 €

43%
TECEdrainpoint S plastic grate frame, 150mm, without grate
In stock² 1 variant RRP 17,14 €* 7,98 €** You save 9,16 €

53%

Customers also bought

Further information

Product information

TECEdrainpoint S
1 x drain
vertical

Product details:

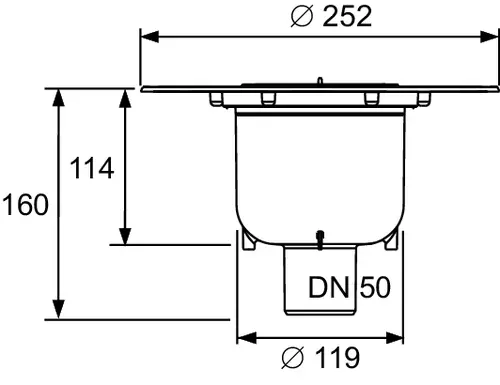

Vertical floor drain, DN 50
made of plastic (PP)
tested in accordance with EN 1253
with universal flange for connecting bonded waterproofing
(according to DIN 18534)
or clamping flange connections
Removable odor trap
Water seal height = 50 mm (in accordance with EN 1253)

Drainage capacity in accordance with EN 1253 at 10/20 mm backwater height above grate:

at minimum height of the extension piece: 0.64/1.36 l/s
at maximum height of the extension piece: 0.70/1.56 l/s

Note:

Delivery incl. construction period protection cover, construction period protection foil and installation instructions.

Required core drill hole: 120mm diameter
