TECEdrainpoint S drain, super flat, with Seal System universal flange, DN 50, without inlet

Item No. 3601404
Further information

RRP 53,19 €* 38,16 € **

Shipping index: 150 Points
incl. 19% VAT in addition

1-2 Weeks

by parcel service

- +

Recommended products

TECE sound insulation mat Drainbase for TECEdrainline and TECEdrainboard
In stock² 1 variant RRP 76,99 €* 40,06 €** You save 36,93 €

48%
TECEdrainpoint S tileable attachment, stainless steel, 100x100mm, frameless
In stock² 1 variant RRP 85,68 €* 48,37 €** You save 37,31 €

44%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, design plate
In stock² 1 variant RRP 135,30 €* 79,42 €** You save 55,88 €

41%
TECEdrainpoint S grate frame, plastic, 100x100mm, incl. design grate
In stock² 1 variant RRP 39,03 €* 19,99 €** You save 19,04 €

49%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate
In stock² 1 variant RRP 89,37 €* 48,97 € You save 42,01 €

47%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate, screwable
In stock² 1 variant RRP 102,34 €* 28,13 €** You save 74,21 €

73%
TECEdrainpoint S grate frame, plastic, 100x100mm, incl. design grate and Seal System sealing sleeve
1-2 Weeks 1 variant RRP 75,21 €* 47,73 €** You save 27,48 €

37%
TECEdrainpoint S grate frame, plastic, 142x142mm, incl. design grate
In stock² 1 variant RRP 68,07 €* 31,81 €** You save 36,26 €

53%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate
In stock² 1 variant RRP 153,15 €* 71,47 €** You save 81,68 €

53%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate, screwable
In stock² 1 variant RRP 166,84 €* 91,43 € You save 79,98 €

48%
TECEdrainpoint S grate frame, plastic, 142x142mm, incl. design grate and Seal System sealing sleeve
1-2 Weeks 1 variant RRP 103,41 €* 56,68 €** You save 46,73 €

45%
TECEdrainpoint S grate frame, stainless steel, 100x100mm, incl. design grate quadratum
1-2 Weeks 1 variant RRP 203,13 €* 106,92 €** You save 96,21 €

47%
TECEdrainpoint S grate frame, stainless steel, 142x142mm, incl. design grate quadratum
In stock² 1 variant RRP 287,03 €* 201,23 €** You save 85,80 €

30%
TECEdrainpoint S grate frame, plastic, 100x100mm, without grate
1-2 Weeks 1 variant RRP 11,84 €* 6,69 €** You save 5,15 €

43%
TECEdrainpoint S plastic grate frame, 150mm, without grate
In stock² 1 variant RRP 17,14 €* 7,98 €** You save 9,16 €

53%

Further information

Product information

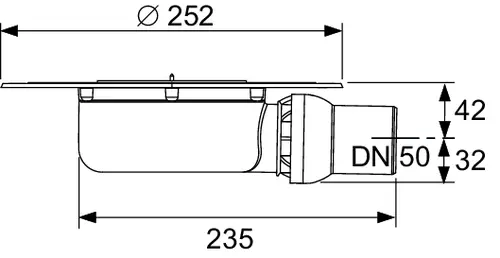

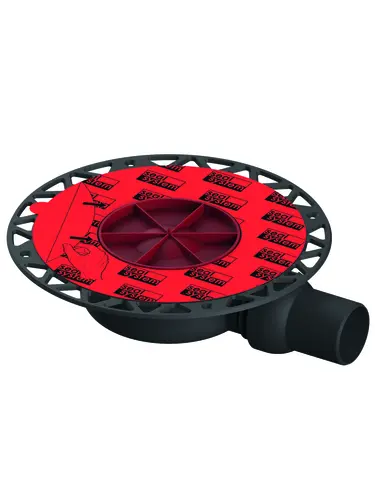

TECEdrainpoint S
1 x drain
super flat

Product details:

Floor drain horizontal, DN 50
super flat, made of plastic (PP)
without inlet
with universal flange for connecting bonded waterproofing
(in accordance with DIN 18534)
or clamping flange connections
with ball joint
Removable odor trap
Reduced sealing water height = 27 mm

Drainage capacity in accordance with EN 1253 at 10/20 mm backwater height above grate:

at minimum height of the extension piece: 0.52/0.61 l/s
with maximum height of the extension piece: 0.69/1.12 l/s

Note:

Delivery includes construction period protection cover, construction period protection foil and installation instructions.
