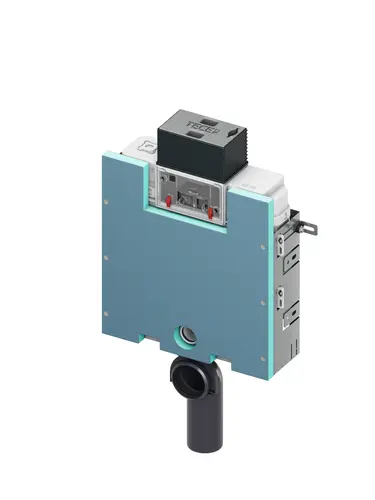

TECEbox WC module, with Uni flushing cisterns, tile support front, installation height 820mm

• TECEbox
• 1 x WC module

Product details

• incl. "easy fit" flush plate mounting
• For installation in a brick pre-wall
• in front of a solid wall
• Adjustable in depth

Uni cistern for operation from the front or top:

• Safety tank made of impact-resistant plastic (tested in accordance with EN 14055)
• Completely pre-assembled and sealed
• Cistern connection with R 1/2" external thread on the side
• Compatible with quick-fit adapters, insulated against condensation
• 10 liter tank volume
• 6 liter preset standard flush volume
• 4.5/7.5/9 liter flush volume adjustable at any time
• 3 liter partial volume flush with dual volume technology
• Remaining volume can be used for immediate cleaning flush
• for TECE flush plates and WC fittings
• Can be used as a single or dual-flush cistern
• Installation tunnel for service opening - can be shortened without tools
• Low-noise hydraulic filling valve (fitting group 1 according to DIN 4109)

Module frame:

• Steel frame with tile support front made of 30 mm construction panel, galvanized
• WC drain elbow DN 90 with transition adapter DN 90/100 made of PP
• Transition adapter also suitable for horizontal installation
• WC connection set DN 90
• including building protection plug
