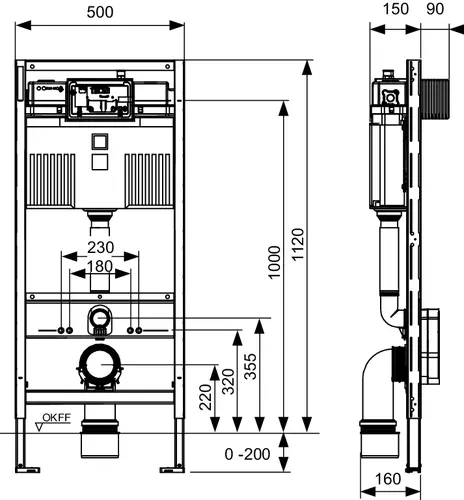

TECEprofil WC module, with Uni flushing cisterns, integrated hygiene flush function, cold water, installation height 1120mm

• TECEprofil
• 1 x WC module
• Cold water

Product details

• WC module incl. "easy fit" flush plate mounting
• For mounting:
• TECEprofil profile pipes
• For installation in metal or wooden stud walls
• As a pre-wall or corner module
• Also suitable for single block installation

Uni cistern for operation from the front:

• Cistern with integrated hygienic flush
• Completely pre-installed cistern unit with hygienic flush function
• Multi-way shut-off valves with function
• for flushing the pipes before commissioning
• Two cistern connections with R 1/2" external thread at the top
• for flushing cold water pipes
• Compatible with quick adapters, insulated against condensation water
• Safety tank made of impact-resistant plastic (tested in accordance with EN 14055)
• Cistern completely pre-assembled and sealed
• 10 liter tank volume
• 6 liter preset standard flush volume
• 4.5/7.5/9 liter flush volume adjustable at any time
• 3 liter partial volume flush with dual-volume technology
• Remaining volume can be used for immediate cleaning flush
• for TECE flush plates and WC fittings
• Can be used as a single or dual-flush cistern
• Installation tunnel for service opening can be shortened without tools
• Low-noise hydraulic filling valve (fitting group 1 according to DIN 4109)
• Mains connection with transformer including connection cable
• Fill level sensor - protects against backflow in the cistern

Operation via Bluetooth interfaces:

• via TECE Smartflow app
• Optionally via BMS interface
• Infinitely variable setting of flush intervals and flush volume
• Setting the flush days and flush volume
• Logging of the flush history

Module frame:

• Self-supporting and powder-coated
• Two retaining bolts and M12 nuts
• WC drain elbow DN 90 with transition adapter DN 90/100 made of PP
• Transition adapter also suitable for horizontal installation
• WC connection set DN 90 and WC connection box
• Incl. protection for pipework, with junction box and cover for transformer
