Ideal Standard Ceraline single-lever wall-mounted washbasin fitting, concealed installation, 180mm projection

• Ideal Standard Ceraline
• 1x single-lever concealed wall-mounted washbasin fitting kit 2 for prefabricated installation
• Projection: 180 mm
• Aerator (inside)
• Metal handle with red/blue marking
• Cartridge: Ø 28 mm
• Firmaflow® cartridge with ceramic sealing discs
• Cartridge swivelling range: 120°
• Stainless steel cartridge transmission
• Hot water temperature limiter
• With 2 metal rosettes (round)
• Standard: DIN EN 248
• Noise behaviour DIN 4109: Group 1
• Service life: DIN EN 817, DIN EN 200

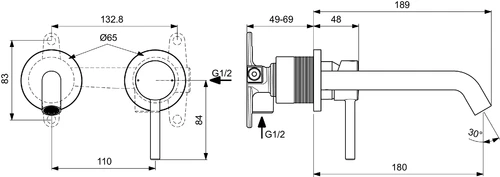

• External dimensions (WxDxH): 175x189x116.5 mm
• flow rate at 3 bar: 5 l/min

Flush-mounted kit 1 for wall fitting with article no.: A1313NU is required for installation. This is available separately.

Optional accessories (available separately)

• Extension for concealed kit 2 (20 mm) for kit 2 with 28 mm cartridge - A861428NU
