TECEdrainline-evo shower channel, with wall tile support, straight stainless steel channel body
- Item No. 60
- Further information
RRP 462,79 €*
226,62 €
**
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
_zubehoer_duschrinnen_597322_m.webp)
_zubehoer_duschrinnen_597323_m.webp)
Customers also bought
Further information
Product information
- TECEdrainline-evo
- 1 x shower channel
- with wall tile support
Product details

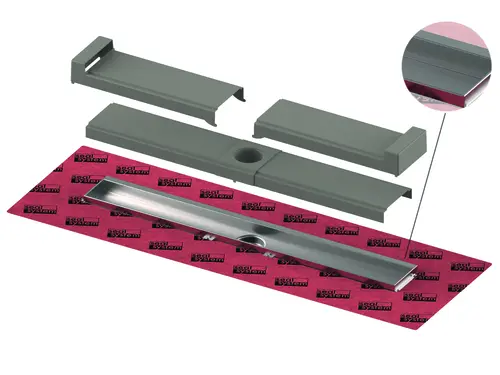

- Straight stainless steel channel body
- including factory-fitted Seal System sealing sleeve
- with construction time protection for installation in screed
- DIN 18534-compliant connection of the TECEdrainline shower channel
- to the bonded waterproofing
consisting of
- Continuously closed channel body made of polished stainless steel (material 1.4301 (304))
- Capillary protection edge to prevent capillary shower water ingress under the tiles
- Backflow-proof secondary drainage via the glass fiber-reinforced plastic hard shell
- Seal System sealing sleeve fitted at the factory
- for on-site incorporation into the liquid or sheet-like bonded waterproofing
- Construction period protection with tamper-evident seal for stainless steel channel and Seal System sealing sleeve
- Holder for mounting optional mounting feet and for anchoring in the screed
- Levelling points (left and right) for clipping and
- for forming a wider screed edge for simplified leveling
- Central channel support for connecting the drain
- Internal slope to improve water drainage and self-cleaning effect
- Immersion pipe seal
- Optional secondary drainage
Ordering information - please order separately:
Design grating or tile trough and drain
Information on product safety
Manufacturer:
TECE GmbH
Hollefeldstr. 57
DE-48282 Emsdetten
E-mail:
info@tece.de
