description
- Applications
- For manual flushing of urinals
- Für Geberit mounting elements for urinal with front operation
- Für Geberit mounting elements for urinal with operation from above
- For installation in Geberit urinal control kits (from year of construction 2009)

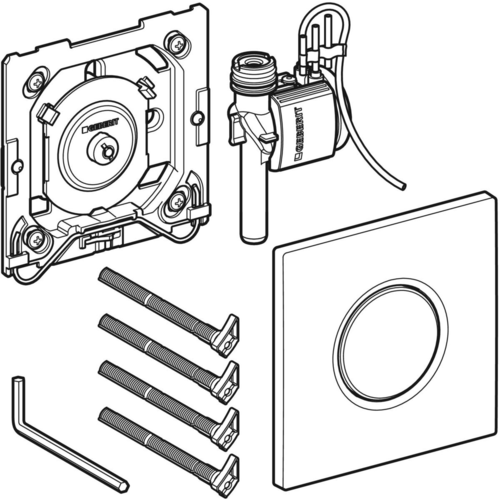

- Scope of supply

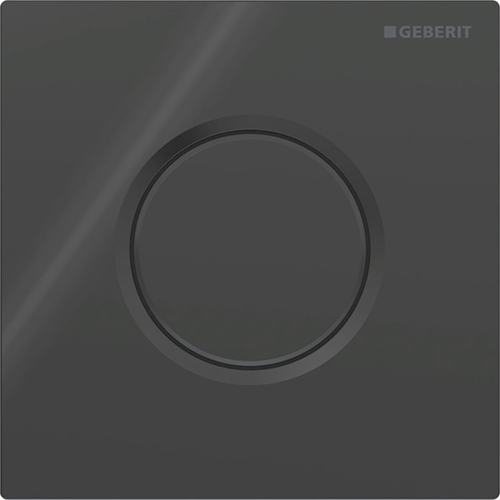

- Operating plate type 01
- Pneumatic flush actuator, pre-mounted on mounting frame
- pneumatic valve
- fastening material
- Technical Data
- flow pressure: 100-800 kPa
- Maximum test pressure water: 1600 kPa
- Maximum test pressure air / inert gas: 300 kPa
- Relative humidity: < 100 %
- Maximum water temperature: 30 °C
- Active force: < 12 N
- flow at 100 kPa without flow limiter: 0.3 l/s
- flow at 100 kPa with flow limiter: 0.24 l/s
- Calculation flow rate: 0.3 l/s
- Minimum flow pressure for calculated flow rate: 100 kPa
- Spül time Setting range: 4/8/12 s
- Properties
- Operating plate with safety latch
- Spül time adjustment with air (pneumatic)
- Low trigger force
- Low lifting motion
- Spülausl;sung when releasing the control button
- Spül quantity via throttle screw
- of the raw kit can be reduced to 0.5 l per flush
- Fitting group II according to DIN 4109
