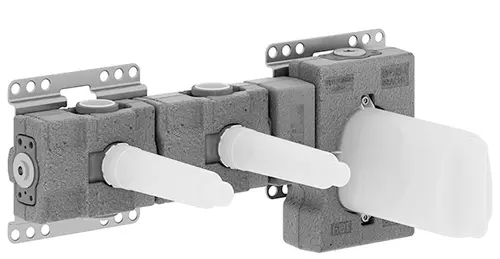

assembly kit pre-assembly

• 2x Backflow preventer
• UP body chrome-plated, DR brass
• 2x Connection IG 3/4" (cold/warm)
• 2x Outlet IG 1/2"
• 1x Outlet IG 1/2" for additional valves
• 2x sleeve can be cut to length
• fastening set
• 3x water protection sleeve
• 3x Shell protective hoods
• integrated sound insulation

Combinable only with the final assembly kits 36 417 980-FF / 36 417 985-FF or 36 315 980-FF / 36 315 985-FF.

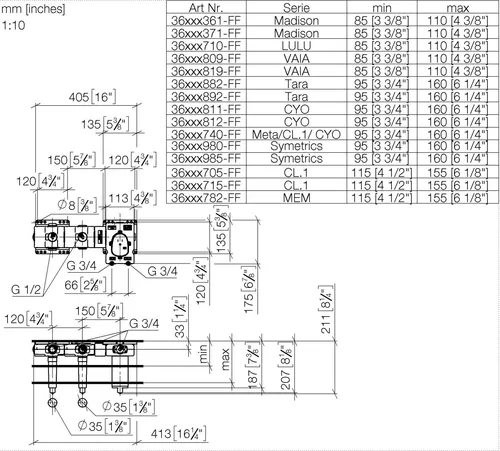

WARNING: Min. installation depth for Symetrics series (incl. xGrid mounting rail) 105 mm (rear edge of mounting rail to top edge of finished wall). Kit pre-assembly only suitable for Symetrics.
