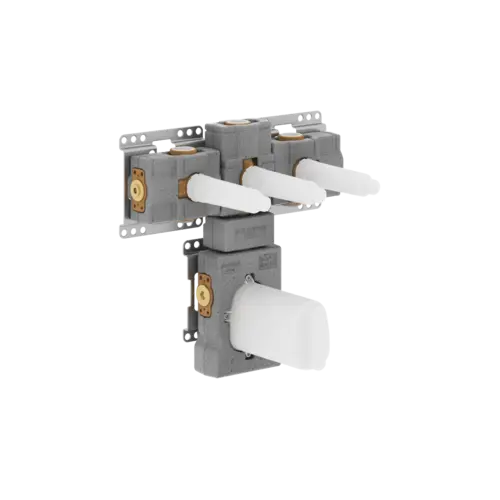

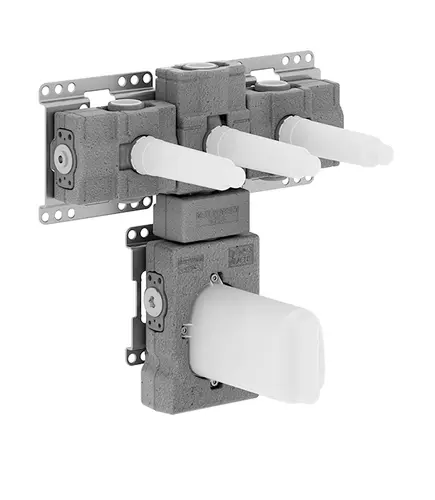

assembly kit pre-assembly

• 2x Backflow preventer
• UP body chrome-plated, DR brass
• 2x connection AG 3/4" (cold/warm)
• 3x Outlet IG 1/2"
• 2x outlet IG 1/2" for additional valves
• 3x sleeve can be cut to length
• fastening set
• 4x water protection sleeve
• 4x Shell protective hoods
• integrated sound insulation

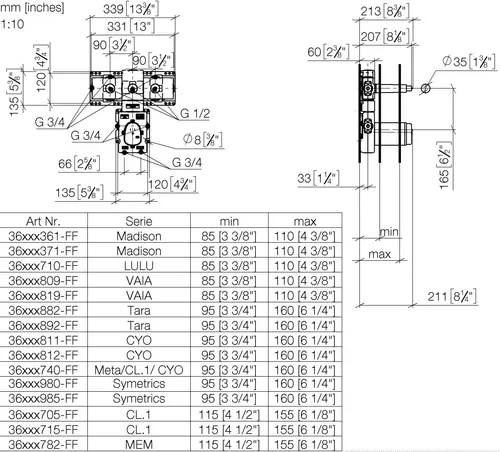

WARNING: Min. installation depth for Symetrics series (incl. xGrid mounting rail) 104 mm (rear edge of mounting rail to top edge of finished wall). Kit pre-assembly only suitable for Symetrics
