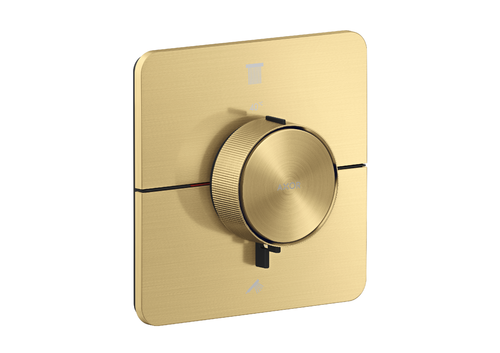

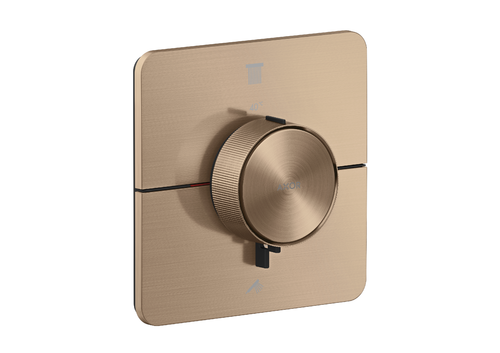

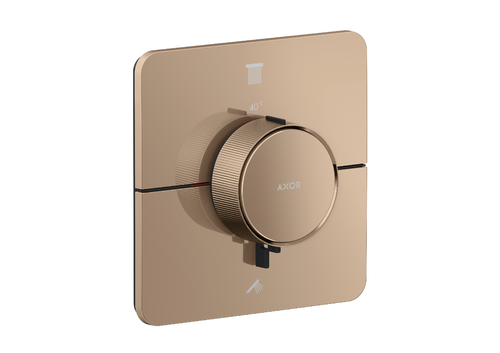

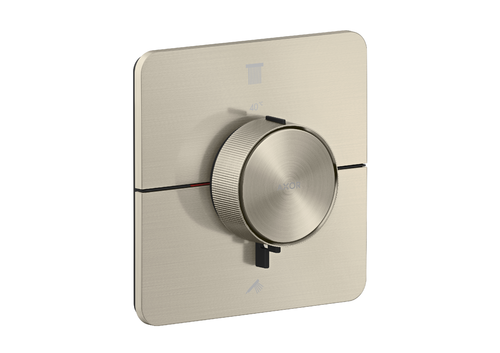

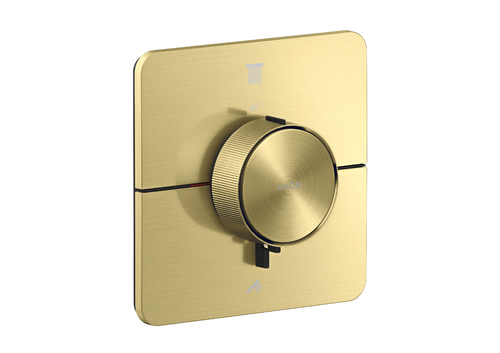

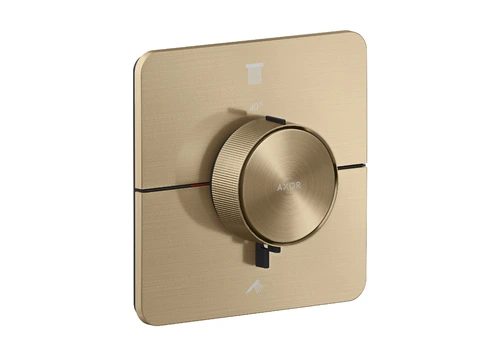

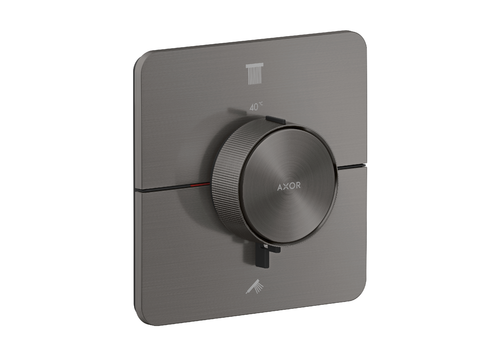

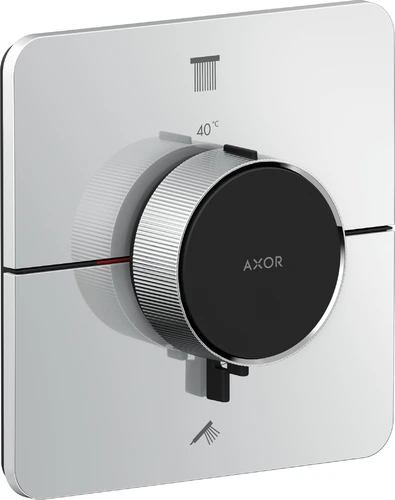

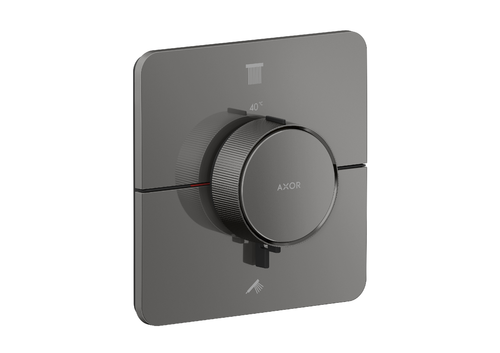

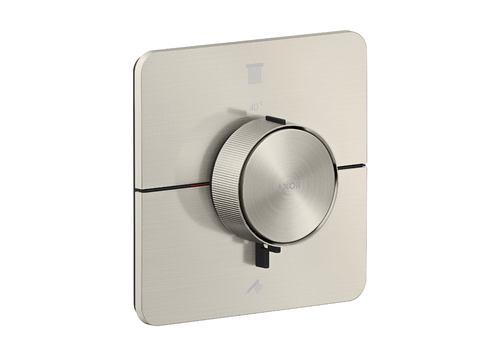

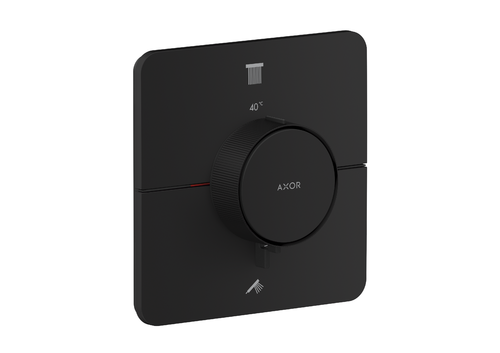

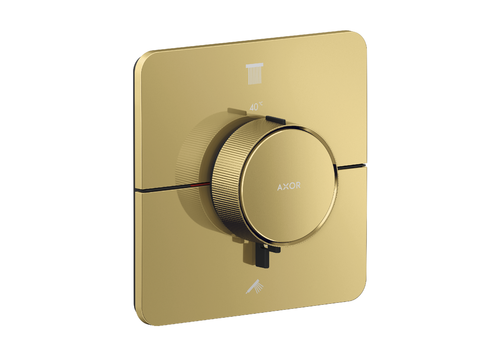

hansgrohe AXOR ShowerSelect ID thermostat, concealed, softsquare, 2 consumers

• hansgrohe AXOR ShowerSelect ID
• 1 x thermostat

Product details

• softsquare shape
• flush-mounted
• for two consumers
• Simultaneous use of several consumers possible
• with select buttons for convenient switching on and off
• Temperature control through vertical handle structure
• with haptic feedback of the thermostat handle
• Volume control with stop function
• Thermostatic cartridge for regulating the temperature
• Start/stop valve for operating the appliances
• Flat rosette for more space in the shower
• Rosette can be subsequently adjusted by +/- 3
• Simple installation thanks to pre-assembled function block
• Handles always at the same height regardless of the installation depth of the base unit
• Adjustable temperature limiter
• with safety lock at 40°C
• Thermal disinfection possible
• Select buttons with laser-engraved consumer symbols
• (Rain large and hand shower)
• Material: metal

Technical details

• max. flow rate at 3 bar: 22.1 l/min.
• flow rate upper outlet: 20 l/min.
• flow rate lower outlet: 20 l/min.
• min. Operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Connection type: Basic body iBox universal 2
• Noise group: I
• flow class: B
• DVGW NW-6509BQ0587
• P-IX 38570/IBB

Note: Basic body iBox universal 2 (item no.: 01400180) not included in scope of delivery, please order separately.
