Intended use

• For drainage of floor level showers
• For installation in the room or on the wall
• For installation in thin bed mortar
• For composite waterproofing
• Suitable for barrier-free construction

Properties

• Quality controlled according to EN 1253-3
• With integrated slope
• Shower channel can be cut to length
• Tile structure floor 10 - 35mm
• Shower channel adjustable in height, inclination and offset
• Easy cleaning
• Water drainage above bonded waterproofing
• Water drainage above the finished floor when using the sealing sleeve

Technical data

• Material: stainless steel

Scope of delivery

• comb insert
• Inlet socket with compensating ring
• Suction cup
• Sealing sleeve

To be ordered additionally (see recommendation)

• Raw construction set for shower channels of the series CleanLine

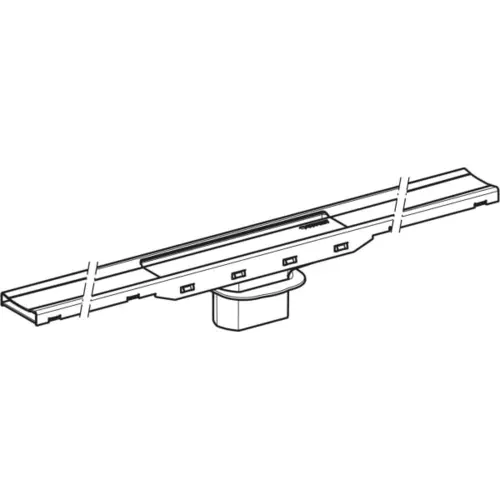

Dimensions (see drawing for more pictures)

• W: 4,4cm / H: 1,0cm / L: 30-90cm
