Geberit type 383 filling valve, for wall-mounted cisterns

• Geberit
• 1 x type 383 filling valve
• for wall-mounted cisterns

Intended use

• for grey water (rainwater) with pH value 6.0-9.5, if a filter system is used
• for ceramic cisterns, for drinking water

Product details

• Adjustable fill level
• Threaded nipple made of brass
• Water connection 3/8"
• Low-noise according to fitting group I (DIN 4109)
• flow pressure: 10-1000 kPa
• Line noise at 3 bar: 7 dB(A)
• Line noise at 5 bar: 13 dB(A)
• Storage temperature: ≤ 40 °C
• Max. water temperature: 25 °C
• flow rate at 0.5 bar: 0.06 l/s.
• flow rate at 3 bar: 0.16 l/s
• Minimum flow pressure for calculation flow rate: 10 kPa
• Calculation flow rate: 0.09 l/s.

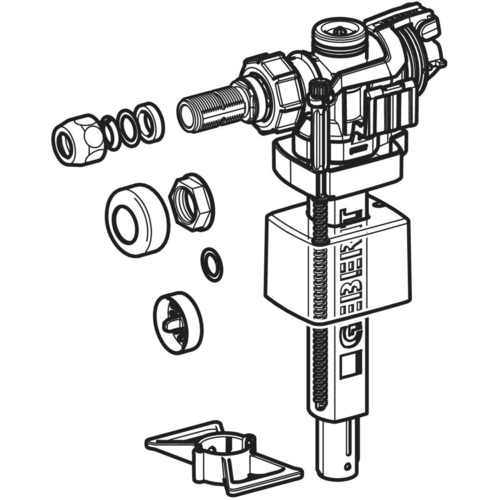

• Scope of delivery:
• Filters for nipple / armoured hose types 350 and 380 Filling valves
• Cone compression fitting
