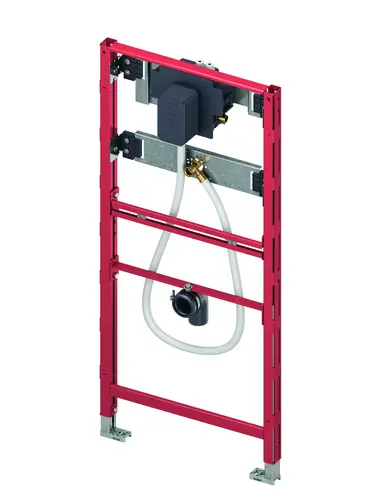

TECEprofil urinal module with TECE flushing cistern U2, installation height 1120mm

• TECEprofil
• 1x urinal module with TECE flush valve housing U2

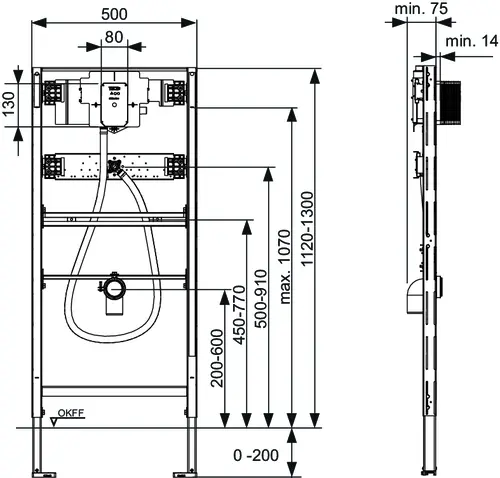

• installation height 1120 mm
• for combination with TECEfilo valve unit and sensor cover
• for attachment to TECEprofil profile pipes
• for installation in metal or wooden stud walls and as a pre-wall or corner module

Completely pre-assembled unit, consisting of:

• TECE urinal flush valve housing U 2 with pre-shut-off and pipework protection
• Integrated V transformer for direct 230 V connection
• R 1/2" connection
• Two adjustable foot supports for a floor structure of 0-200 mm
• installation depth 75 mm
• Two M 8 retaining bolts
• Infinitely adjustable mounting rail
• Infinitely height-adjustable waste water connection
• Connection elbow including protective plugs
• Fixing material for urinal
• Inlet set 1/2"

To be ordered separately:

• TECEfilo valve unit
• TECEfilo sensor cover
• Fastening for pre-wall, corner or wooden post mounting
