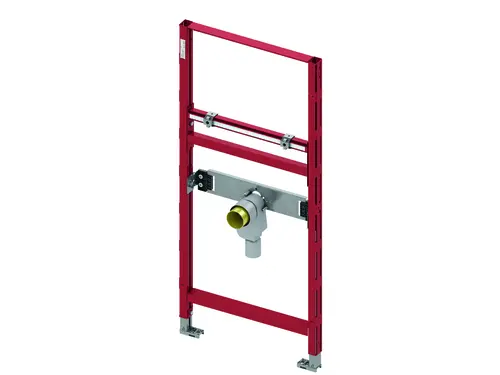

TECEprofil washbasin module with concealed odor trap, installation height 1120mm
- Item No. 9310004
- Further information
RRP 321,06 €*
134,34 €
**
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
Further information
Product information
- TECEprofil
- 1x washbasin module concealed odor trap
- installation height 1120 mm
- for attachment to TECEprofil profile pipes
- for installation in metal or wooden stud walls and as a pre-wall or corner module
- For the installation of under-mounted washbasin systems
Completely pre-assembled unit, consisting of
- Self-supporting mounting frame, powder-coated
- Two M 10 retaining bolts, height- and side-adjustable spacing
- Sound-decoupled fitting crossbar for attaching wall plates, dimensions 150 mm and 200 mm
- Flush-mounted odor trap with removable siphon insert (also seal)
- Including protective plugs
To be ordered separately:
- Wall plates
- Connection elbow for concealed trap 9080001
- Fastening for pre-wall, corner or wooden post mounting
- Fitting traverse for concealed/AP fittings 9020041
