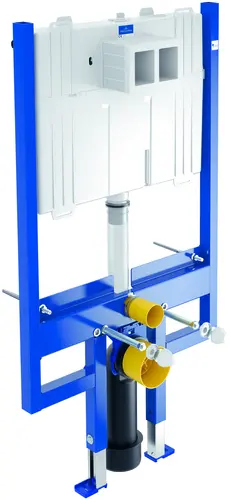

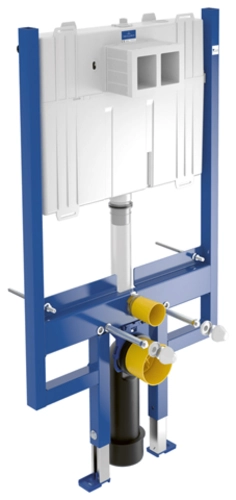

Villeroy & Boch ViConnect Compact pre-wall element for drywall construction, with flush tanks, installation height 80mm
- Item No. 92247600
- Further information
RRP 499,80 €*
384,74 €
**
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
Customers also bought
Further information
Product information
- Villeroy & Boch ViConnect
- 1 x WC pre-wall element Compact for drywall construction
- with flush tanks
- height 80mm
- for dry panelling
- Installation in front of solid wall, in lightweight stud wall and much more
- Simple connection to the actuator plates via cable technology with twist-and-click connection
- Adjustment range of feet from unfinished floor to OKFFB: 0-200 mm
- Depth of front edge of element: min. 90 mm
- with flush tanks 80 mm with wall bracket
- including feet and fixing material
- 2 WC retaining bolts M12 adjustable 180 mm with building protection and nuts
- Installation instructions
- Fastening material
- without actuator plates EN 14055 Single box packaging
- Can be combined with: for wall-mounted toilet
- Self-supporting, powder-coated steel frame construction
- Completely pre-assembled Please order actuator plates separately
- Actuation from the front
- Transmission of the button function via flexible cable technology to the drain set
- Connection to actuator plates via twist-and-click connection Condensation-insulated concealed flush tank with dual flush volume 3/6 l, can be switched to 3/4.5 l, max. flush volume 7.5 l
- Filling valve fitting group I
- Flexible hose to filling valve can be screwed on by hand
- Angle valve connection set R1/2, protective box for inspection opening can be shortened
- WC connection elbow 90° DN 90 (Ø 90) / with transition sleeve DN 90 (Ø 90) / DN 110 (Ø 110) with building protection
- WC connection set DN 90 (Ø 90) / 180 mm complete
- Test mark for concealed flush tanks: Fitting group I for drywall construction
- Compact, with 80 mm flush tanks
