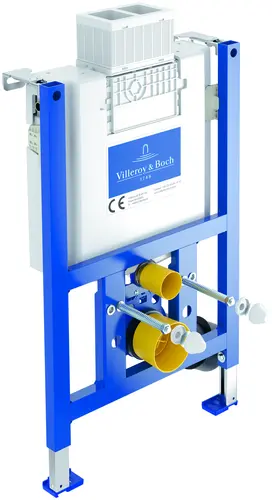

Villeroy & Boch ViConnect WC pre-wall element for drywall construction, low, installation height 820mm
- Item No. 92247500
- Further information
RRP 499,80 €*
384,74 €
**
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
Further information
Product information
- Villeroy & Boch ViConnect
- 1 x WC pre-wall element for drywall construction
- low
- height 820mm
- for dry panelling
- Installation in front of solid wall, in lightweight stud wall and much more
- Adjustment range of feet from unfinished floor to OKFFB: 0-200 mm
- Simple connection to the actuator plates via cable technology with twist-click connection
- Depth adjustment front edge element: 135-205 mm including 2 wall brackets
- Including self-locking feet with adjustable foot plates and fastening material
- 2 WC retaining bolts M12 adjustable 180/230 mm with construction protection and nuts
- Installation instructions
- without actuator plates EN 14055
- Packed in cardboard box
- Can be combined with: for wall-mounted toilet
- Self-supporting, powder-coated steel frame construction
- Completely pre-assembled, actuation from the front/top
- With small inspection opening Please order actuator plates separately
- Condensation-insulated concealed cistern with dual flush system
- Max. flush volume 4/7.5 litres
- Factory setting 6/3 litres
- Filling valve fitting group I
- Angle valve R1/2, drain elbow clamp with 4 adjustment positions
- Connection elbow DN 90 (Ø 90) with transition sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with building protection
- WC connection set DN 90 (Ø 90) / 180 mm complete
- Building protection box can be shortened for inspection opening
- Flexible hose can be screwed to the filling valve by hand
- Test mark for concealed flush tanks: fitting group I for drywall construction, low
