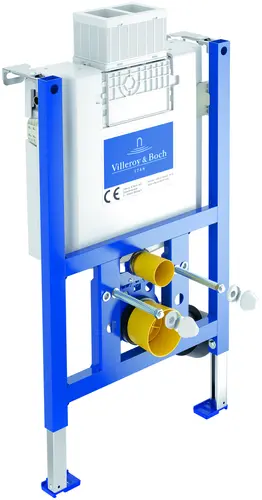

Villeroy & Boch ViConnect WC pre-wall element for drywall construction, low, installation height 980mm
- Item No. 92247800
- Further information
RRP 499,80 €*
384,74 €
**
Shipping index: 150 Points
incl. 19% VAT in addition
Recommended products
Further information
Product information
- Villeroy & Boch ViConnect
- 1 x WC pre-wall element for drywall construction
- low
- height 980mm
- for dry panelling
- Installation in front of solid wall, in lightweight stud wall and much more
- Simple connection to the actuator plates via cable technology with twist-and-click connection
- Adjustment range of feet from unfinished floor to OKFFB: 0-200 mm
- Depth adjustment front edge of element: 135-205 mm
- Including 2 wall brackets
- Including self-locking feet with adjustable foot plates
- Fixing material
- 2 WC retaining bolts M12 adjustable 180/230 mm with building protection and nuts
- Installation instructions
- without actuator plates EN 14055
- Can be combined with: for wall-mounted toilet
- Self-supporting, powder-coated steel frame construction
- Completely pre-assembled
- Actuation from the front/top
- With small inspection opening Please order actuator plates separately
- Condensation-insulated concealed flush tank with dual flush volume (7.5-4.5 l / 4-2 l), max. flush volume 4/7.5 l, factory setting 6/3 l, adjustable flush flow restrictor for adaptation to rimless WC bowls
- Filling valve fitting group I, angle valve R1/2
- Drain elbow clamp with 4 adjustment positions
- PE WC connection bend DN 90 (Ø 90) with transition sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with building protection
- WC connection set DN 90 (Ø 90) / 180 mm complete
- Building protection box for inspection opening can be shortened
- Flexible hose can be screwed to the filling valve by hand
- Test mark for concealed flush tanks: fitting group I
