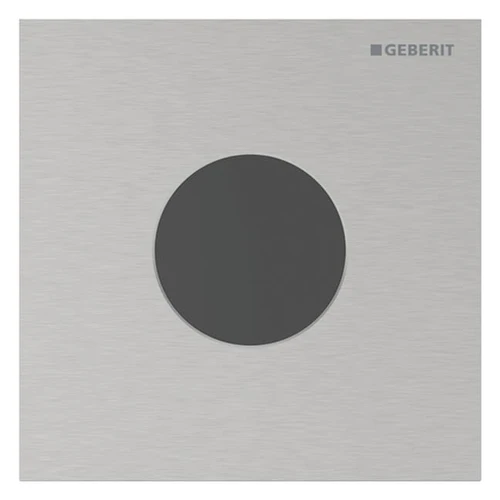

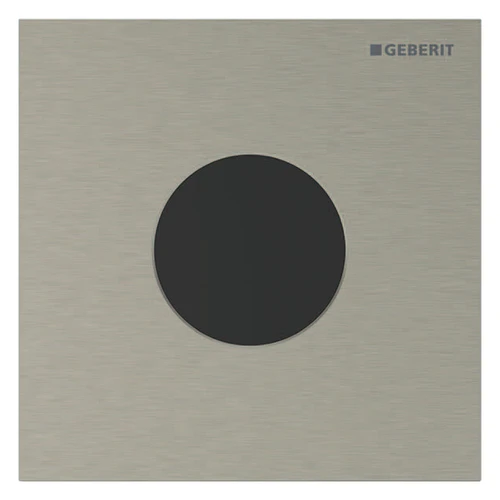

Geberit urinal flush control, type 40 cover plate, with electronic flush actuation, battery-operated, round, stainless steel

• Geberit
• 1 x urinal flush control
• with electronic flush release
• battery operation

Product details

• for automatically flushing urinals
• for Geberit mounting elements for urinals with actuation from the front
• for installation in body shell sets for Geberit urinal flush controls (from year of manufacture 2009)
• Type 40 cover plate with safety catch
• Safe IR distance detection
• Self-adjusting IR sensor
• Infrared user detection with background suppression
• Adjustable water-saving hybrid mode
• Adjustable flush time and interval flush
• DYNAmic flush time adjustment
• Adjustable pre-rinse
• Can be switched to operation with lid urinal
• Single flush after activating the power supply Battery-operated
• Functions can be set and queried with Geberit Service mobile phone
• Device settings and operation with mobile device via integrated Bluetooth® interface
• Compatible with Geberit Control App and Geberit Connect
• Can be networked wirelessly with Geberit Gateway via GEBUS converter
• Wireless networking with Geberit Gateway via Bluetooth®
• Low battery warning
• Valve closing function when battery is empty
• Flush trigger can be deactivated
• Flush volume can be reduced to 0.5 litres per flush using the throttle screw of the pipework set
• Fitting group II according to DIN 4109
• Material: stainless steel
• With EASY-to-clean coating

Technical data

• Battery type: Alkaline (1.5 V AA)
• Service life of battery supplied: 2 years
• Protection class: IP45
• Operating voltage: 3 V DC
• flow pressure: 100-800 kPa
• Test pressure water max.: 1600 kPa
• Test pressure air / inert gas max.: 300 kPa
• Max. water temperature: 30 °C
• flow rate at 1 bar (without flow limiter): 0.3 l/s.
• flow rate at 1 kPa (without flow limiter): 0.18 l/s.
• Minimum flow pressure for calculation flow rate: 100 kPa
• rel. Humidity: ≤ 100 %
• Calculation flow rate: 0.23 l/s.
• Interval flush Setting range: 1-168 h
• Interval flush Factory setting: 24 h
• Interval flush time Setting range: 3-180 s
• Interval flush time Factory setting: 5 s
• Dwell time Setting range: 3-15 s
• Dwell time Factory setting: 7 s
• Flush time Setting range: 1-15 s
• Flush time Factory setting: 7 s
• Power consumption: ≤ 0.5 watts
• Button shape: round

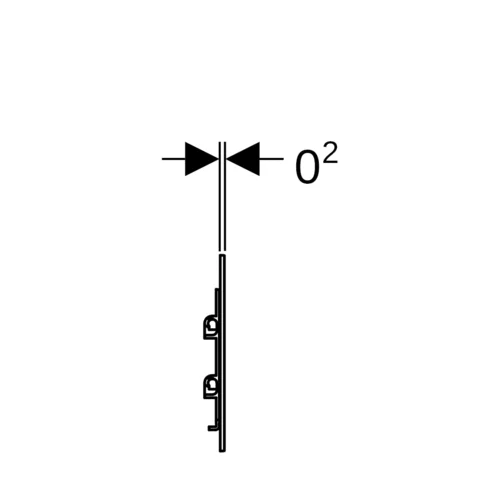

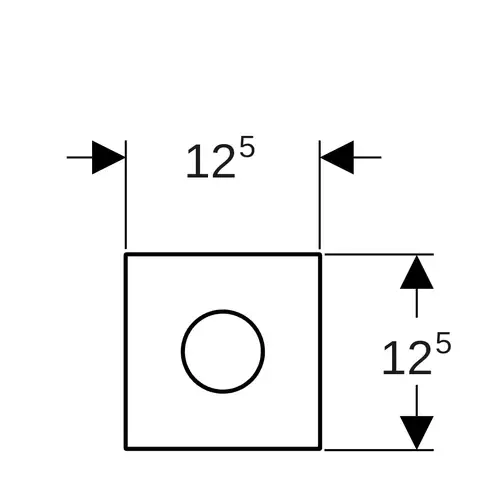

• Dimensions (WxDxH): 12.5 x 0.2 x 12.5 cm

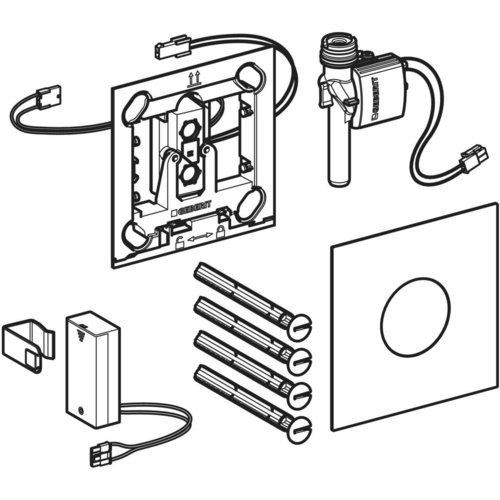

Scope of delivery

• Type 40 cover plate, round IR window
• Infrared control, pre-assembled on mounting frame
• Solenoid valve, battery compartment and 2 AA 1.5 V alkaline manganese batteries
• Fixing material
