TECEneo Set, shower toilet cold water with toilet seat cover SLIM

• TECEneo
• 1 x Set

Set consists of:

• TECEneo shower toilet with cold water connection (9700207)
• TECE toilet seat with lid SLIM (9700603)
• Connection material including sound insulation tape, concealed fastening etc.

Features of the WC ceramic appliance:

• Wall-hung, washdown WC for 6 and 4.5 litre flush volumes
• Water-saving and rimless
• with integrated shower function,
• currentless via on-site cold water connection
• for wall-mounted cisterns
• For new installations or retrofitting
• cyclon flush technology:
• Powerful flushing vortex - thorough and quiet flushing
• cera clean technology:
• special surface coating - easy cleaning
• rimless with integrated splash guard
• concealed wall mounting, concealed water connection
• pre fix technology:
• factory-fixed toilet seat attachment
• for a wobble-free seat and lid
• toilet seat not included in the scope of delivery
• Compatible with all TECE shower toilet seats
• Material: sanitary ceramic, colour: white
• Approval according to EN 997

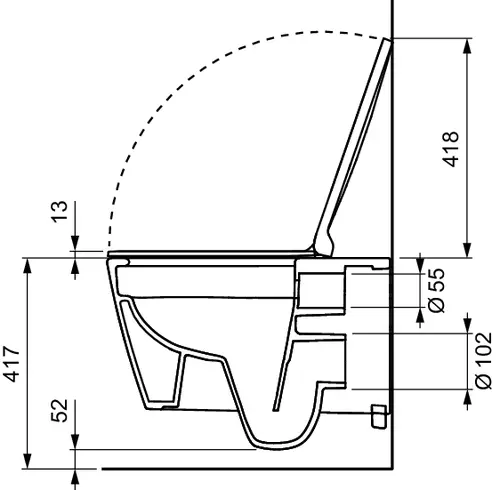

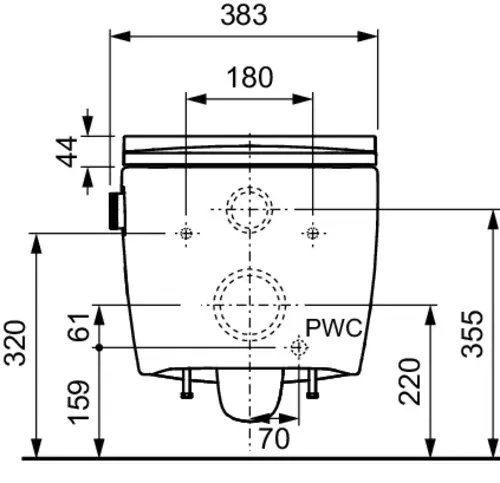

• Fixing distance: 180 mm

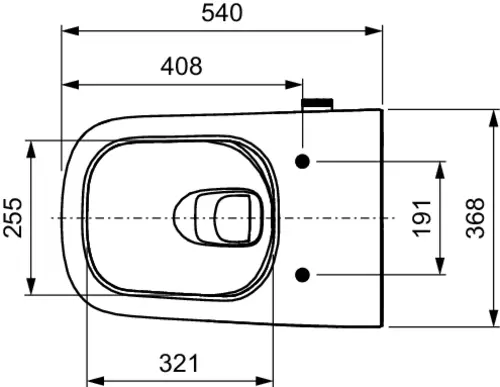

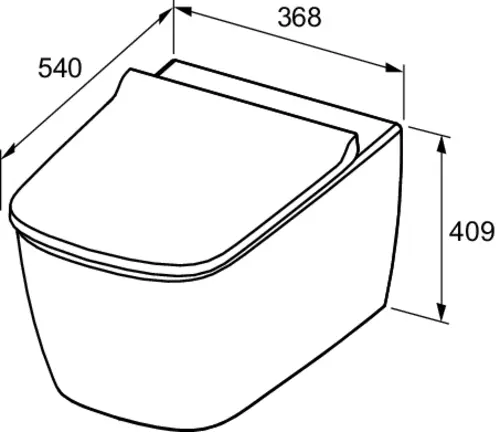

• WxDxH: 368 x 540 x 365 mm

Features of the shower function:

• Intuitive operation via side rotary knob for water volume
• Shower jet continuously adjustable up to 5.6 l/min.
• Replaceable shower bar caps
• No electrical connection required, function via water pressure
• Shower rail is rinsed before and after each use when retracting/extending
• Minimum flow pressure 1.5 bar (max. 10 bar)
• Approval in accordance with EN 1717

Features of the toilet seat:

• Particularly slim design, lid encloses seat
• pre fix technology for a wobble-free seat and lid
• Quick installation thanks to pre fix technology: simply push on and tighten the screw as required.
• Hinges made of glass fibre-reinforced high-performance plastic with "soft-close" automatic closing mechanism
• Easy to remove: Slotted head screw can be loosened without tools
• Easy to clean, complete seat and lid unit can be removed
• toilet seat with ergonomic design for a comfortable seat
• Prevents "splashing", e.g. by small children, thanks to the extension of the seat at the front inside.
• Made of torsion-resistant Duroplast, colour white
• Approval according to DIN 19516

Scope of delivery:

• Shower toilet incl. concealed fixing, sound insulation
• pre-assembled design control knob (stainless steel brushed),
• Panzer hoses for water connection (to standard angle valves),
• Shower rail installation tool,
• Device for descaling unit and cleaning can
• TECE toilet seat with lid SLIM (9700603)

Note:

A cold water connection with angle valve must be pre-fitted on site for the shower function.
