hansgrohe Vernis Blend shower system 200, 1jet, with thermostat, EcoSmart

• hansgrohe Vernis Blend
• 1 x shower system 200

Product details:

• Wall-mounted, surface-mounted installation

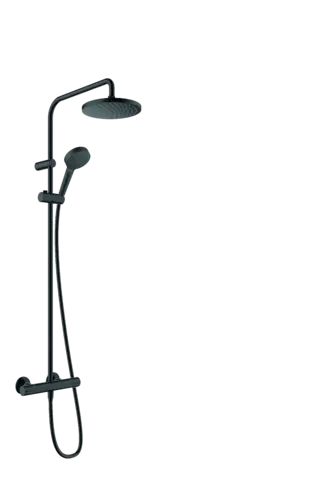

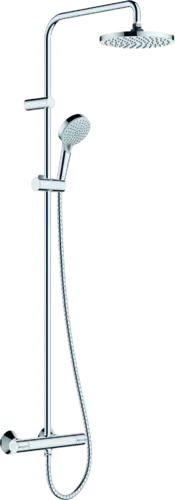

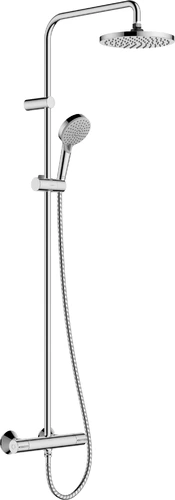

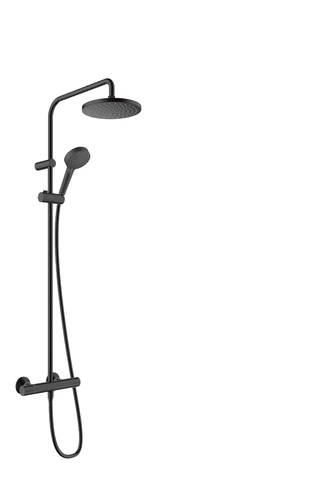

• Shower system consists of:
• Overhead shower, hand shower, hand shower holder
• as well as shower thermostat, shower hose and shower bar
• Spray type overhead shower: Rain
• Spray type hand shower: Rain, IntenseRain
• Overhead shower with ball joint - adjustable angle
• Detachable overhead shower
• Height-adjustable hand shower holder with push slide
• with Vernis thermostat, 2 consumers
• Safety lock at 40ºC
• Adjustable hot water limiter
• Intrinsically safe against backflow
• QuickClean: prevents limescale deposits - easy cleaning
• Equipped with EcoSmart technology
• Suitable for instantaneous water heaters

Technical data:

• Shower arm length overhead shower: 426 mm
• Total length of shower rail: 1124 mm
• Shower bar diameter: 19 mm
• Shower head diameter: 200 mm
• Max. flow rate at 3 bar: 8.7 l/min.
• Pitch: 150 ± 12 mm
• Connection thread: G 1/2
• Connection size: DN15
• Minimum flow pressure: 1 bar
• min. Operating pressure: 1 bar
• Max. operating pressure: 10 bar

Scope of delivery:

• Shower system with thermostat, S-connections, rosettes,
• fixing material and installation instructions
