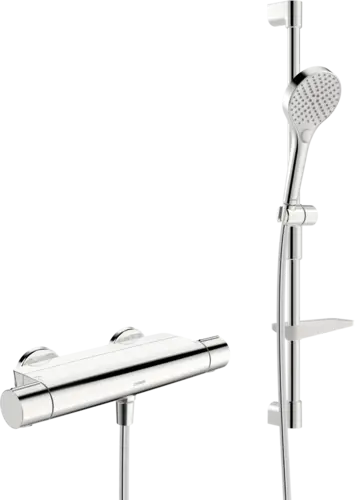

HANSA HANSAOPTIMA shower fitting, thermostatic, with diverter, incl. shower bar set, chrome

• HANSA HANSAOPTIMA
• 1 x shower fitting

Product details

• wall mounting, surface mounting
• hose feed-through rotatable
• can be shortened
• rotary diverter, pressure-independent
• Integrated diverter with shut-off
• diverter integrated in the spout
• incl. hand shower, shower rail, soap dish
• adjustable shower rail holder and shower hose
• with eco function
• Anti-limescale technology
• Twistguard: anti-twist protection for shower hose
• MagShelf: removable shelf with magnetic attachment
• Hand shower diameter: 110 mm
• 3-jet: normal, massage and rain jet
• Temperature and flow adjustment handle
• Easy-Grip operating lever
• Eco function - for the amount of water
• Safety lock to prevent scalding at 38°C
• ThermoCool: minimal heating of the tap housing
• S-connections, covers and silencers
• with safety device (EN1717): EB
• Upper parts with ceramic sealing washers
• for adjusting the water volume for one outlet
• Thermostatic cartridge for temperature control
• with backflow preventer and dirt filter
• Shower hose length: 1750 mm
• Color: chrome
• Hot water supply max. +65°C

Technical details

• max. flow rate at 3 bar: 13.2 l/min.
• Economy flow rate at 3 bar: 7.2 l/min.
• Connection size: G 3/4

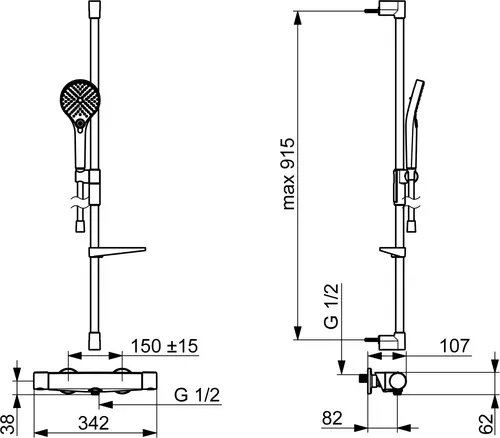

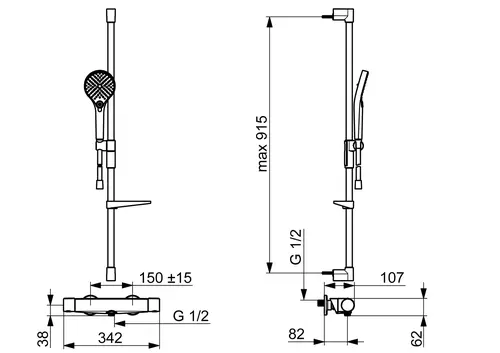

• Installation distance: CC150± 15 mm
• Working pressure: 1 - 10 bar
• Noise class: I
