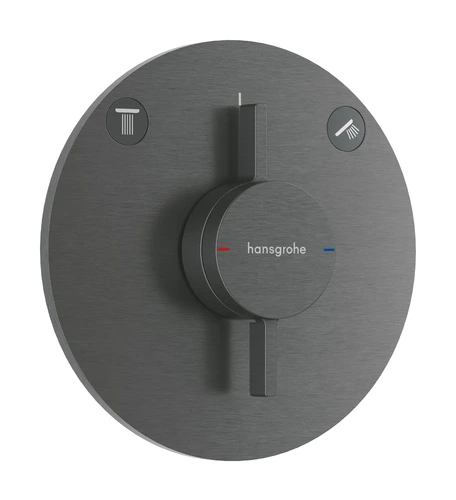

hansgrohe DuoTurn S mixer tap, concealed, 2 outlets, 2 functions, round rosette

• hansgrohe DuoTurn S
• 1 x mixer tap
• for 2 outlets
• with flow control and diverter
• Ceramic mixing system for temperature control
• Shut-off/diverter valve
• Flat rosette – more space in the shower
• Pre-assembled function block – easy installation
• Handles always at the same height
• regardless of the base body’s installation depth
• Round rosette – can be adjusted retrospectively by +/- 3°
• Material (rosette): plastic
• Material (handles): metal
• The mixer is supplied with the ‘Rain’ buttons (small and large),
• as well as the hand shower, spray and bath buttons
• Max. flow rate at 3 bar: 31 litres/min.
• Flow rate for hand shower at 3 bar: 24 l/min,

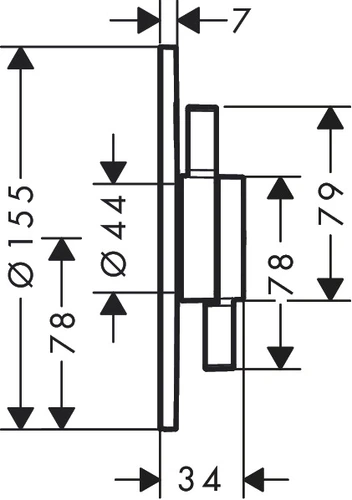

• Rosette size: Ø 155 mm
• Minimum operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise class: I
• Flow class: C, B
• Connection type: iBox universal 2 base body (Item no.: 01500180)
• Base body not included; please order separately.

Contents:

• Mixer, functional block
• Fixing material and fitting instructions
