Ideal Standard Alu+ mixer set, shower mixer, shower combi. wall connection and concealed kit

Ideal Standard Alu+

1x tap set no. 1

Faucet package consisting of:

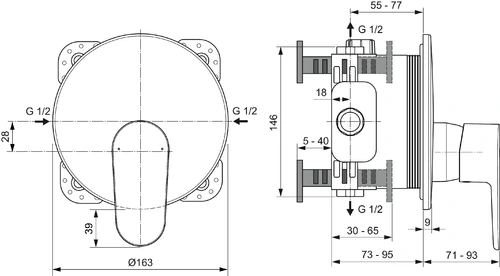

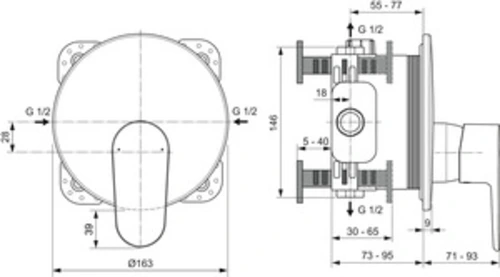

A7349 - Single lever concealed shower mixer kit 2 for prefabricated installation

• Metal handle with red/blue marking
• Concealed kit 1 Easy-Box required for installation (A1000NU - sold separately)
• Cartridge: 47 mm diameter
• CLICK cartridge with ceramic sealing washers
• Cartridge swivel range: 120°
• Stainless steel cartridge transmission
• Hot water temperature limiter
• With 1 rosette (round) made of plastic
• DICHT-FIX system: Separate sealing of each opening for optimum protection of the structure against moisture and water
• Weight: 1.193 kg

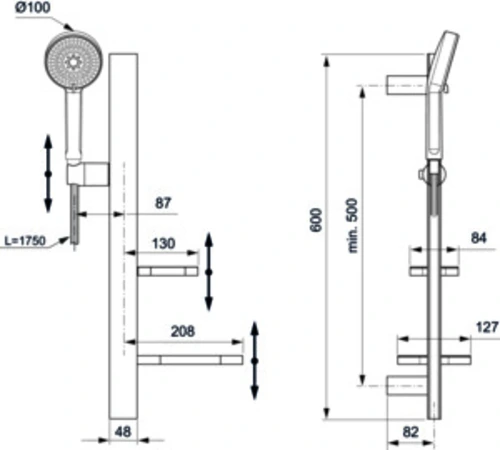

BD586 - Shower combination

• Hand shower: 2-function
• Diameter: 100 mm
• Spray types: Massage and gentle rain
• Rotary switch
• EasyClean
• Shower bar made of aluminum 600 mm
• Adjustable shower holder with push button
• Height-adjustable wall bracket
• 2 shelves (insert removable)
• Shower holder and shelves can be mounted individually on the left / right
• Idealflex shower hose 1750 mm
• G1/2 connection
• Weight: 2.560 kg

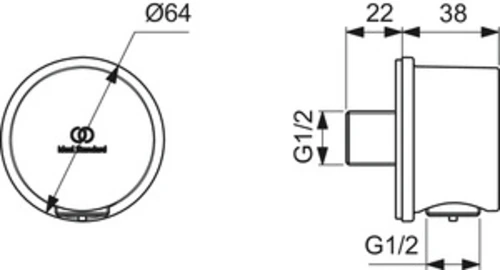

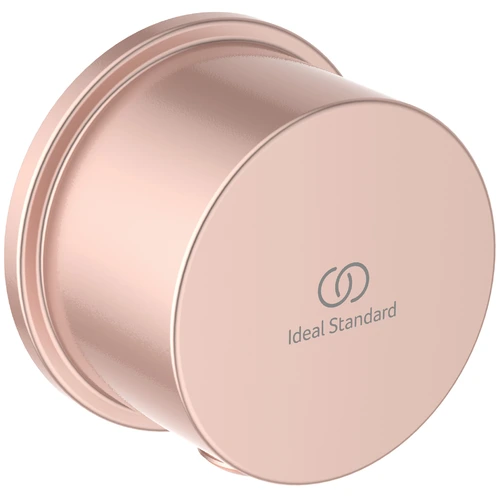

BC808 - Flush-mounted wall connection elbow

• Backflow preventer
• DVGW intrinsically safe
• Shower hose connection G1/2
• Wall connection G1/2
• Weight: 0.306 kg

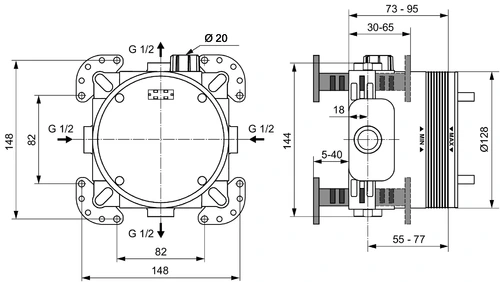

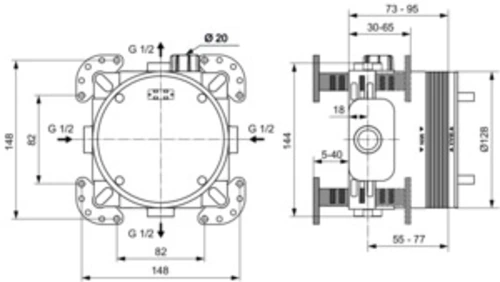

A1000 - Concealed kit 1 Easy-Box for concealed single-lever mixer and thermostats (incl. Navigo) Kit 2

• Wall installation
• Pre-assembly in the shell
• With plaster template and flushing block
• G1/2 connections
• DZR dezincification-resistant
• Installation depth 73-95 mm
• Height adjuster 5-40 mm
• Weight: 0.986 kg
