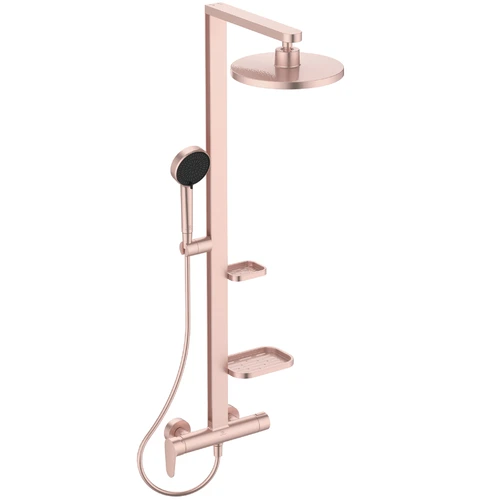

Ideal Standard Alu+ shower system with concealed single-lever shower mixer

• Ideal Standard Alu+
• 1 x Shower system with surface-mounted single-lever shower mixer DN 15
• flow rate at 3 bar: 12/8 l/min

Rain shower

• 2-function
• Ø 260 mm
• Spray types: gentle rain and rain
• Rotary switch
• with ball joint
• EasyClean

Hand shower

• 2-function
• Ø 100 mm
• Spray types: massage and gentle rain
• Rotary switch
• EasyClean

Water-bearing shower rail

• Wall mounting included
• Adjustable shower holder with push button
• 2 shelves (insert removable)
• Shower holder and shelves can be mounted individually on the left/right

Shower hose

• Idealflex 1750 mm
• G1/2 connection

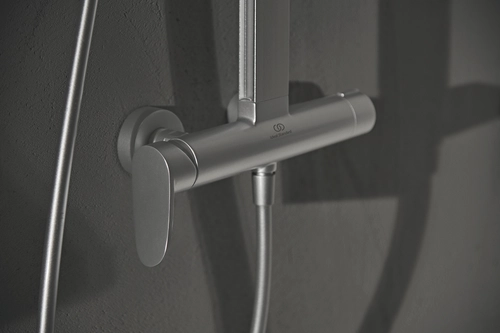

Single lever surface-mounted shower mixer DN 15

• Fitting body made of aluminium, internal plastic water guide
• Lead and nickel-free
• Backflow preventer
• Cool body
• S-connections (adjustable)
• Plastic handles
• CLICK cartridge
• Firmaflow cartridge with ceramic sealing discs
• Ceramic cartridge
• Cartridge swivelling range: 100°
• Hot water temperature limiter
• Hot water temperature setting with scald protection
• RV cartridge on the hot water side with integrated pressure relief valve (pressure relief greater than 16 bar)
• Integrated hand shower/rain shower switch
• Noise behaviour DIN 4109: Group 1
