Ideal Standard Melange single lever concealed bath mixer kit 2, intrinsically safe to DIN EN 1717Chrome

• Ideal Standard Melange
• 1x Single lever concealed bath mixer kit 2 for pre-fitting
• chrome finish
• Metal handle with red/blue marking
• Cartridge: Ø 47 mm
• CLICK cartridge with ceramic sealing discs
• Stainless steel cartridge ratio
• Hot water temperature limiter
• Intrinsically safe in accordance with DIN EN 1717
• With 1 rosette (round)
• DICHT-FIX system: Separate sealing of each opening for optimum protection of the structure against moisture and water
• With pull diverter tray/shower
• Noise behaviour DIN 4109: Group 1
• Service life: DIN EN 817, DIN EN 200

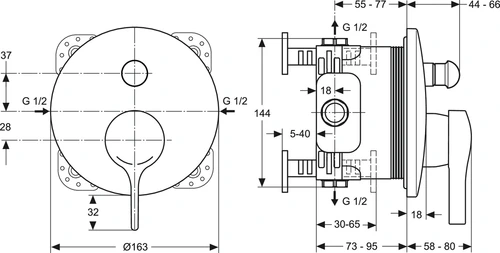

• External dimensions (WxDxH): 163x58x195 mm
• flow rate at 3 bar: 24 l/min

The flush-mounted kit 1 Easy Box for single-lever mixers and thermostats with article no.: A1000NU is required for installation. This is available separately.

Optional accessories (available separately)

• Extension for single-lever mixer and thermostats flush-mounted kit 2 (20 mm) - A960704NU
• round spacer frame Ø 163 mm for single-lever mixer and thermostats flush-mounted kit 2 (20 mm), chrome - A960705AA
• Pre-valve for Easy-Box - A960706NU
• Extension for single-lever mixer and thermostats flush-mounted kit 2 (40 mm) - A962476NU
• Back-to-back cartridge for single-lever mixer (for reversed connections) - A963462NU
• Backflow preventer - F961150NU
