Geberit DuoFresh Module with manual release and slide-in, for Geberit DuoFresh Stick, for Sigma concealed cistern 12 cm

• Geberit DuoFresh
• 1 x module with manual release and slide-in unit
• For direct odour extraction from WC ceramics
• The function of Geberitflush plates and WC controls is totrigger the flushing of Geberit concealed cisterns. The actuation can be manual or contactless electronic, as a dual-flush, single-flush or flush-stop flush.
• With a low actuating force of < 20 N for manual actuation, the flush can be triggered effortlessly. The push bars are soundproofed and can be adjusted without tools.
• WC controls can be used for barrier-free applications
• Installation must be carried out in accordance with the manufacturer-specific regulations, the recognised rules of technology and in compliance with the relevant DIN standards
• For Geberit Sigma concealed cisterns 12 cm (from year of construction 2008)
• For direct odour extraction from WC ceramics
• For inserting Geberit DuoFresh Stick without chlorine or oxidising components
• For Geberit flush plates Sigma01
• For Geberit flush plates Sigma10
• For Geberit flush plates Sigma20
• For Geberit flush plates Sigma21
• For Geberit flush plates Sigma30
• For Geberit flush plates Sigma50
• Not suitable for Geberit Duofix elements for wall-hung toilets, corner solution
• Actuation from the front
• Recirculating air odour extraction with filtration integrated in the concealed cistern
• Extraction unit can be installed without tools
• Compatible with Geberit Home app
• Odour neutralisation with ceramic honeycomb filter
• Ceramic honeycomb filter for odour neutralisation can be replaced without tools
• Geberit DuoFresh Stick can be inserted without tools

Technical data: Protection class

• Protection class: III
• Protection class: IPX4
• Operating voltage: 12 V DC
• Power consumption: 7 W
• Power consumption standby: ≤ 0.5 W
• Net weight: 0.550 kg

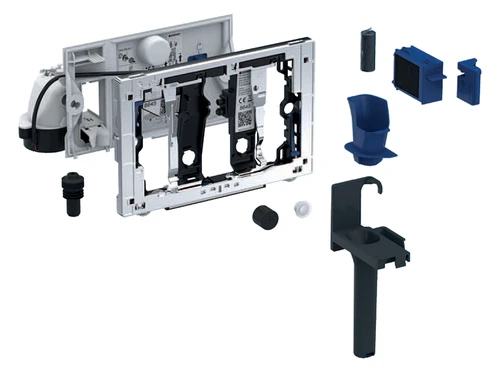

Scope of delivery

• Mounting frame with swivelling mechanism
• Protective plate
• Extraction unit with radial fan
• Ceramic honeycomb filter
• Collecting cup for Geberit DuoFresh Stick
• Moisture protection for empty pipe
• Drawer with filters and holder for Geberit DuoFresh Stick
• 8 Geberit DuoFresh Sticks

To be ordered additionally!

• Set Power supply 230 V / 12 V / 50 Hz, with power supply cable 1.8 m, for electrical connection box

Additional information

• Switch for switching the odour extraction system on and off must be provided on site
• Power at the WC, not visible behind the WC ceramic appliance, via the Power & Connect Box
• Odour extraction via recirculation or exhaust air is possible with almost all standard wall-hung toilets. An overview of the WC ceramics for which odour extraction is not possible and a list of the Geberit ceramics that have been positively tested can be found at www.geberit.de
