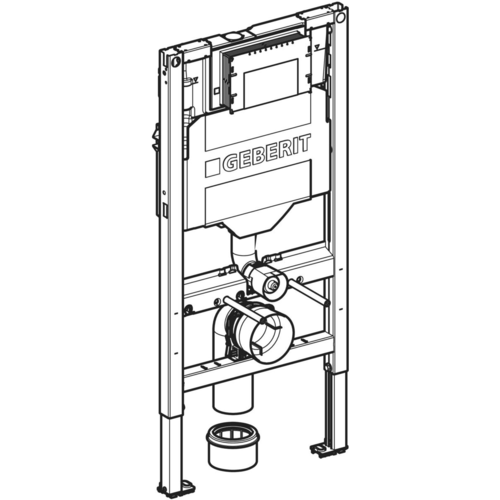

Geberit Duofix Bambini element for children's wall-hung toilet, 97cm, with Sigma concealed cistern 12cm

• Geberit Duofix Bambini
• 1 x element for children's wall-hung toilet, 97 cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part and full-height pre-walls, in full-height partition walls
• for installation in Geberit GIS support systems for pre-walls
• for children's wall-hung toilets
• for flush plate for toilet Bambini

Product details

• self-supporting frame, corrosion-protected by powder coating
• with connection dimensions according to EN 33
• Projection up to 70 cm
• swivelling foot plates, suitable for installation in U-profiles UW 50 and UW 75
• Foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Connection elbow can be mounted in various depth positions without tools (adjustment range: 45 mm)
• Geberit Sigma concealed cistern 12 cm, condensation-insulated
• Actuation from the front
• Immediate flushing possible (factory setting)
• tool-free installation and maintenance work on the concealed cistern
• Water connection at the rear or top centre
• Construction protection for service opening can be cut to length, protects against moisture and dirt

Technical specifications

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Material: Steel
• Height adjustable: No
• Dimensions (WxDxH): 50 x 12 x 97 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• Construction protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection elbow made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 fixing brackets for stand
• Fixing and protection material
