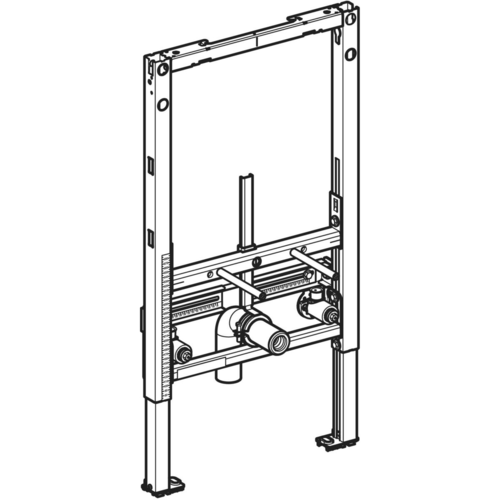

Geberit Duofix element for bidet, 82cm, universal

• Geberit Duofix
• 1 x element for bidets, 82cm
• universal

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part-height pre-walls
• for wall-mounted bidets with free-standing tap

Product details

• self-supporting frame, corrosion-protected by powder coating
• Alternative fixing position for wall anchors
• swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Fixing distance to wall-hung bidet 18 or 23 cm
• Height-adjustable bidet attachment
• Height-adjustable and sound-insulated attachment for connecting elbow
• Width and height-adjustable tap fixings
• Protective plug for one-off pressure test with cold water up to max. 15 bar / 1500 kPa

Technical specifications

• Material: steel
• Dimensions (WxDxH): 50 x 10 x 82 cm

Scope of delivery

• 2 connection brackets Rp 1/2" / R 1/2", MF-capable
• 2 sound insulation pads and 2 dam sleeves
• Connection elbow made of PE-HD, ø 50 mm
• Seal ø 44 / 32 mm
• Fastening and protective material
