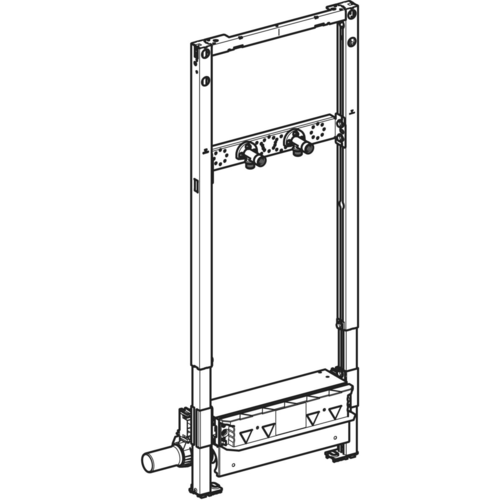

Geberit Duofix element for shower, 130cm, with wall drain, wall-mounted tap, for screed height at inlet 90-250mm

• Geberit Duofix
• 1 x element for shower, 130cm
• with wall drain
• for screed height at the inlet 90 - 250 mm

Intended use

• for metal and timber stud walls, Geberit Duofix system walls
• and for installation in part and full-height pre-walls, in full-height partition walls
• for domestic bathrooms, bonded waterproofing
• For the drainage of floor-level showers
• For screed heights ≥ 90 mm at the inlet
• For surface-mounted fittings

Product details

• Self-supporting frame, corrosion-protected thanks to powder coating
• With pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system supports
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with slip resistance, galvanised, corrosion-protected
• Quality-monitored in accordance with EN 1253-3
• Adjustable sealing level for tension-free seal connection
• Self-adhesive, fleece-coated sealing disc
• Sealing fleece all round 10 cm, for connecting sealing systems
• Sealing fleece pre-assembled
• Height- and drip-adjustable traverse fittings
• Adjustable inlet height of the odour trap
• Planking thickness 10-40 mm
• Suitable for floor tiling from 2-26 mm
• Suitable for wall tiling from 2-35 mm
• Drain connection on the side

Technical data

• Material: steel
• Water trap height: 50 mm
• Drainage capacity: 0.80 l/s.
• DN50
• Dimensions (WxDxH): 50 x 12.5 x 130 cm

Scope of delivery

• 2 connection brackets Rp 1/2" / R 1/2", MF-capable
• 2 sound insulation pads and 2 insulation sleeves
• Connection pipe made of PE-HD, ø 50 mm
• Building protection cover with integrated inlet plate
• Fastening material
