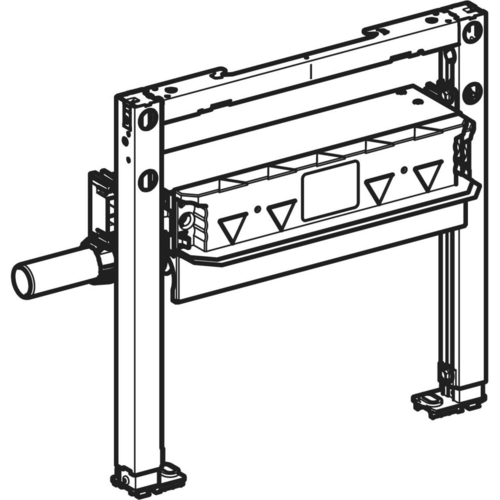

Geberit Duofix element for shower, 50cm, with wall drain, for screed height at inlet 65-90mm

• Geberit Duofix
• 1 x element for shower, 50cm
• with wall drain
• for screed height at the inlet 65-90mm

Intended use

• for metal and timber stud walls, Geberit Duofix system walls
• and for installation in floor-to-ceiling pre-walls, in floor-to-ceiling partition walls
• For domestic bathrooms, bonded waterproofing
• For installation with a very low floor structure
• To collect the waste water from a single shower head
• For the drainage of floor-level showers
• For screed heights ≥ 65 mm at the inlet

Product details

• Self-supporting frame, corrosion-protected thanks to powder coating
• With pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with slip resistance, galvanised, corrosion-protected
• Adjustable sealing level for tension-free seal connection
• Sealing fleece pre-assembled
• Sealing fleece 10 cm all round, for connecting sealing systems
• For installation with a very low floor structure Sealing water height only 30 mm
• Adjustable inlet height of the odour trap
• Planking thickness 10-40 mm
• Suitable for tile structures on floors from 2-26 mm
• Suitable for tile structures on walls from 2-35 mm
• Drain connection on the side

Technical data

• Material: steel
• Water trap height: 30 mm
• Drainage capacity: 0.40 l/s.
• DN40
• Dimensions (WxDxH): 50 x 11 x 50 cm

Scope of delivery

• Connection piece made of PE-HD, ø 40 mm
• Protective cover with integrated inlet plate
• Fastening material
