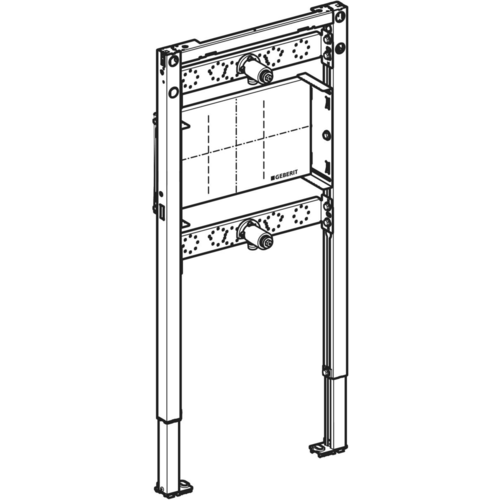

Geberit Duofix element for shower and Bathtubs, 98-112cm, concealed wall-mounted tap

• Geberit Duofix
• 1 x element for shower and Bathtubs, 98-112cm
• for concealed wall-mounted tap

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part or full-height pre-walls, in full-height partition walls
• for concealed wall-mounted taps

Product details

• Self-supporting frame, corrosion-protected by powder coating
• With pull-out plate for lateral fastening above the element on metal or wooden profiles
• or to Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Height and depth-adjustable mounting plate made of veneer lumber (waterproof glued)
• Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
• Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
• Height and depth-adjustable traverse fittings

Technical data

• Material: steel
• Dimensions (WxDxH): 50 x 11 x 98-112 cm

Scope of delivery

• Connection bracket Rp 1/2" / R 1/2", MF-capable
• Connection bracket Rp 3/4" / R 1/2", MF-capable
• 2 sound insulation pads and 2 insulation sleeves
• Fastening material
