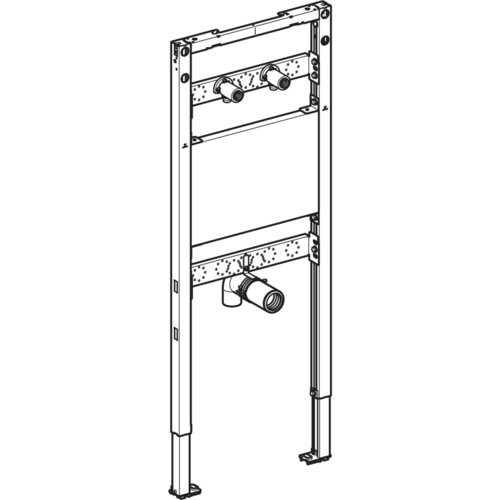

Geberit Duofix element, for sinks, 130cm, wall-mounted tap surface-mounted

• Geberit Duofix
• 1 x element for sinks, 130cm

Intended use

• for metal and timber stud walls, for floor structures 0-25 cm
• for Geberit Duofix system walls
• for installation in part or full-height pre-walls and in full-height partition walls
• for the installation of sinks
• for surface-mounted wall-mounted taps

Product details

• Statically self-supporting frame, corrosion-protected by powder coating
• with pull-out plate for lateral fastening above the element on metal or wooden profiles or on Geberit Duofix system supports
• Alternative fixing position for wall anchors
• swivelling foot plates, suitable for installation in U-profiles UW 50 and 75
• Foot plates can be mounted in Geberit Duofix system rail without tools (without additional components)
• Galvanised, corrosion-protected foot supports, with slip resistance
• Height-adjustable mounting plate
• Mounting plate made of veneer wood, waterproof glued
• Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to 13501
• Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
• Height-adjustable and sound-insulated attachment for connecting bend
• Height and depth-adjustable traverse fittings
• Dimensions (WxDxH): 50 x 8.3 x 130 cm

Scope of delivery

• 2 connection brackets Rp 1/2" / R 1/2", MF-capable
• 2 sound insulation pads and 2 insulation sleeves
• Connection elbow made of PE-HD, ø 50 / 63 mm
• Seal ø 57 / 50 mm and seal ø 57 / 40 mm
• Fastening material
