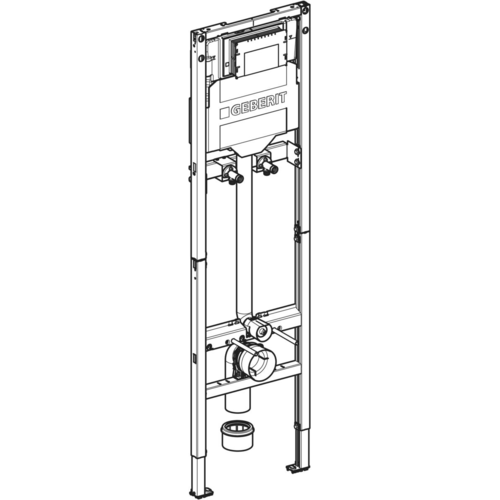

Geberit Duofix element for splashback basin, 175cm, Sigma concealed cistern 12cm, wall-mounted tap surface-mounted

• Geberit Duofix
• 1 x element for infusion basin, 175cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part-height and room-height pre-walls, in room-height partition walls
• For installation of 300 Basic spout (Art. No. S8A00600000G) with wall fitting
• For installation of Publica sink with wall-mounted tap
• For surface-mounted wall taps

Product details

• Self-supporting frame, corrosion-protected by powder coating
• Two-part frame
• With connection dimensions in accordance with EN 33
• Projection up to 70 cm
• pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system supports
• Alternative fixing position for wall anchors
• swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Geberit Sigma concealed cistern 12 cm, condensation-insulated
• Suitable for single flush, dual flush and flush-stop flushing
• Actuation from the front
• Immediate rinsing possible (factory setting)
• tool-free installation and maintenance work on the concealed cistern
• Water connection at the rear or top centre
• Construction protection for service opening can be cut to length, protects against moisture and dirt
• Height-adjustable crossbar for fittings
• Galvanised crossbar for fittings

Technical specifications

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25 °C
• Flush volume factory setting: 6 / 3 litres
• Large flush volume setting range: 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 3 - 4 litres
• flow rate at 3 bar: 0.16 l/s
• Material: Steel
• Dimensions (WxDxH): 50 x 12 x 175 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• 2 connection brackets Rp 1/2" / R 1/2", MF-compatible
• 2 sound insulation pads and 2 dam sleeves
• Building protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection bend made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Fastening and protection material
