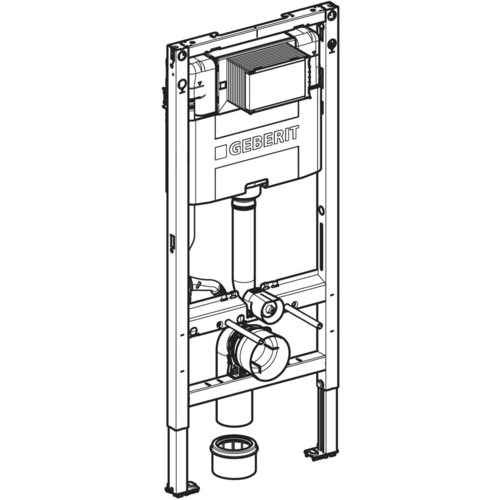

Geberit Duofix element for wall-hung toilet, 112cm, with Omega concealed cistern 12cm

• Geberit Duofix
• 1 x element for wall-hung toilet, 112 cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part-height and room-height pre-walls, in room-height partition walls

Product details

• Self-supporting frame, corrosion-protected by powder coating
• with connection dimensions in accordance with DIN EN33
• Projection up to 70cm
• Pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system supports
• Alternative fixing position for wall anchors
• swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Connection bend in various depth heights can be installed without tools (adjustment range: 45 mm)
• Geberit Omega concealed cistern 12cm, condensation-insulated
• Suitable for dual flush
• for front actuation
• Immediate flushing possible (factory setting)
• tool-free installation and maintenance work possible on the concealed cistern
• Water connection on the left side or left rear
• Construction protection for service opening can be cut to length, protects against moisture or dirt

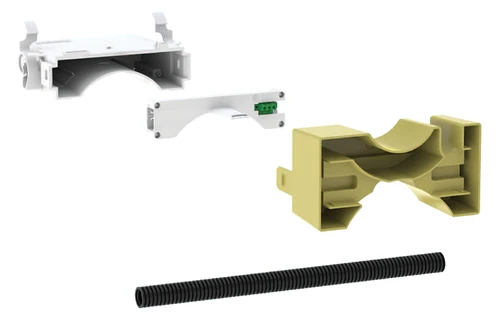

• Empty pipe for water supply line for Geberit AquaClean Shower WCs and for connection cable
• Fastening option for electrical connection and Power & Connect Box

Technical data: flow pressure

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Material: Steel
• Height adjustable: No

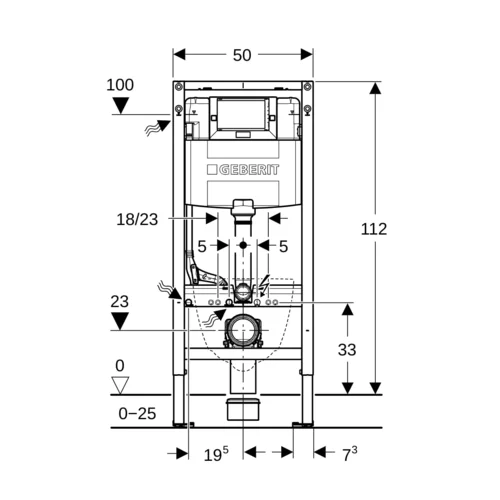

• Dimensions (WxDxH): 50 x 12 x 112 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• Construction protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection elbow made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Fastening and protective material
