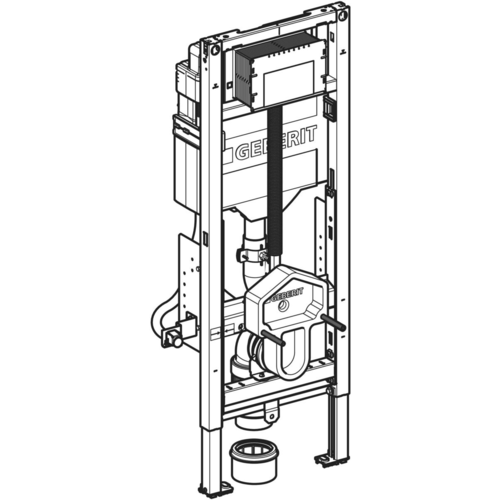

Geberit Duofix element for wall-hung toilet, 112cm, with Sigma concealed cistern 12cm, barrier-free, height-adjustable toilet

• Geberit Duofix
• 1 x element for wall-hung toilet, 112 cm
• barrier-free

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part-height and room-height pre-walls, in room-height partition walls
• For installation in Geberit GIS support systems for pre-walls
• Suitable for barrier-free construction
• For wall-hung toilets with a fixing distance of 18 cm
• Not suitable for Sigma60 flush plates

Product details

• Self-supporting frame, corrosion-protected by powder coating
• with connection dimensions in accordance with DIN EN33
• Projection up to 70 cm
• Reduced frame width for positioning support and grab rails next to the element
• WC ceramic appliance can be subsequently height-adjusted in the finished bathroom (41 - 49 cm from the finished floor)
• Pull-out plate for lateral attachment above the element on metal or wooden profiles
• or on Geberit system stands
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• Foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Pull-out connection elbow, can be mounted vertically and horizontally on the element
• Geberit Sigma concealed cistern 12 cm, condensation-insulated
• Suitable for 1-quantity, 2-quantity and flush-stop flushing
• Actuation from the front
• Immediate rinsing possible (factory setting)
• Water connection at the rear or top centre
• Construction protection for service opening can be cut to length, protects against moisture and dirt
• With empty pipe for water supply line for Geberit AquaClean Shower WCs or for connection cable
• Fastening option for electrical connection

Technical specifications

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Material: Steel

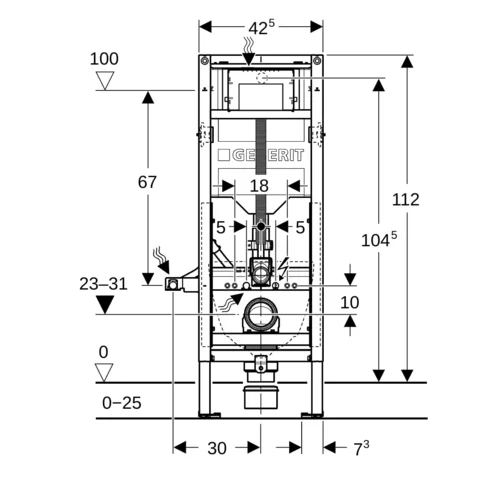

• Dimensions (WxDxH): 42.5 x 17 x 112 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• Construction protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection elbow made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Construction protection for adjustment range of flush elbow and connection elbow
• Fastening and protection material
