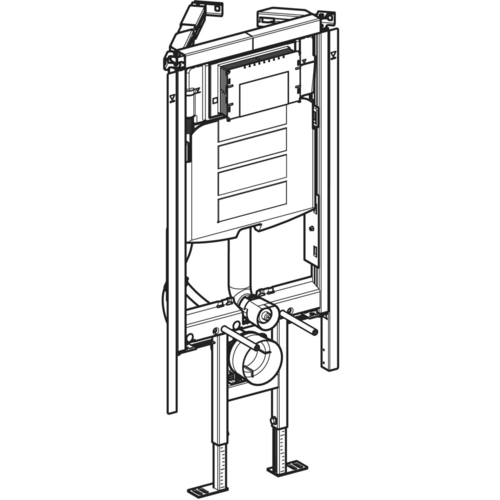

Geberit Duofix element for wall-hung toilet, 112cm, with Sigma concealed cistern 12cm, corner solution

• Geberit Duofix
• 1 x element for wall-hung toilet, 112 cm

Intended use

• for metal and timber stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part-height and room-height pre-walls
• For free-standing installation with wall connection on one side
• not suitable for Geberit DuoFresh modules and for slide-in units for Geberit DuoFresh Stick

Product details

• self-supporting frame, corrosion-protected by powder coating
• with connection dimensions according to DIN EN33
• Projection up to 62cm
• wall mounting variable 30°-60°, can be extended 10 cm on both sides
• Integrated panelling support can be pulled out at the front, top and sides
• Minimum and maximum dimensions for base area: W = 56/76 cm, D =28/38 cm, side length = 39.6/53.7 cm
• Footrests indented for lateral distortion of the waste water pipe
• Galvanised, corrosion-protected foot supports
• Fastening for connection pipe can be mounted in various positions without tools (adjustment range: 45 mm)
• Geberit Sigma concealed cistern 12 cm, condensation-insulated
• Suitable for 1-quantity, 2-quantity and flush-stop flushing
• Actuation from the front
• Immediate flushing possible (factory setting)
• tool-free installation and maintenance work on the concealed cistern
• Water connection at the rear or top centre
• Construction protection for service opening can be cut to length, protects against moisture and dirt
• With empty pipe for water supply line for Geberit AquaClean Shower WCs or for connection cable
• Fastening option for electrical connection

Technical specifications

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Material: Steel

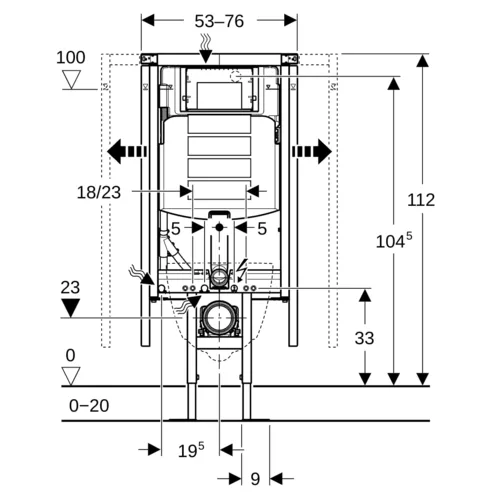

• Dimensions (WxDxH): 53 - 76 x 13 x 112 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• Construction protection for service opening
• Connection set for WC, ø 90 mm
• Connection piece made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Flush-mounted box for drill hole ø 68 mm, for electrical connection
• Connection for one-sided wall connection
• Fastening and protective material
