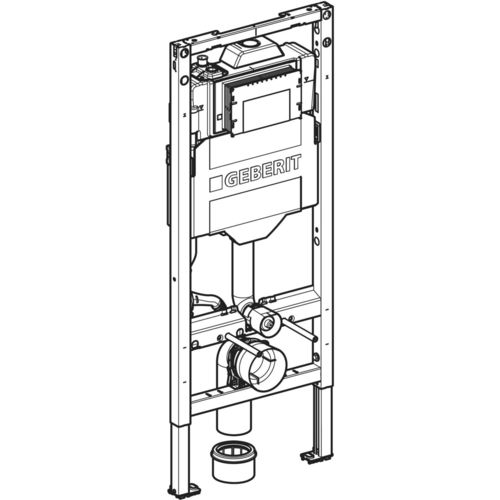

Geberit Duofix element for wall-hung toilet, 120cm, with Sigma concealed cistern 12cm, 2 water connections, with hygienic flush HS50

• Geberit Duofix
• 1 x element for wall-hung toilet, 120 cm
• with hygienic flush HS50
• 2 water connections

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part or full-height pre-walls, in full-height partition walls
• to prevent stagnation in drinking water pipes
• for connection to Geberit Bus via converter

Product details

• self-supporting frame, corrosion-protected by powder coating
• with connection dimensions in accordance with EN 33
• Projection up to 70cm
• pull-out plate for lateral attachment above the element to metal or wooden profiles
• or to Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Connection elbow can be installed at various depths without tools (adjustment range: 45 mm)
• Sigma concealed cistern 12 cm, condensation-insulated
• Suitable for 1-quantity, 2-quantity and flush-stop flushing
• For operation from the front
• Immediate rinsing possible (factory setting)
• Installation and maintenance work on the concealed cistern without tools
• Construction protection for service opening can be cut to length, protects against moisture and dirt
• Empty pipe for water supply line for Geberit AquaClean Shower WCs and for connection cable
• With fastening option for electrical connection
• Flushing programmes selectable (time / interval)
• Compatible with Geberit Control app, function statistics can be called up via app
• Device settings and operation with mobile device via integrated Bluetooth® interface
• User recognition
• Digital I/O interface (central flush triggering, potential-free fault display, control of external solenoid valve)
• Can be wired networked with Geberit Gateway via GEBUS converter
• Connection to Geberit bus directly or via converter
• Compatible with Geberit Connect
• External temperature sensor can be connected
• Internal volume flow sensor can be connected
• Built-in backflow sensor
• Solenoid valve de-energised closed
• Interference immunity for industrial operations in accordance with EN 61000-6-2
• One connection for cold water R 1/2", MF-capable, with blue protective cap, top
• External thread MF 1/2" MasterFix and MeplaFix compatible
• Power supply via external power supply unit or via bus converter with integrated power supply unit

Technical data: IP45

• Protection class: IP45
• Operating voltage: 12 V DC
• Power consumption (stand-by): 1 watt
• Power consumption: 7.2 watts
• flow pressure: 10 - 1000 kPa
• Max. cold water temperature: 25°C
• Max. hot water temperature: 70°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Flushing capacity per solenoid valve: 4 l/min.
• Interval flush: 72 h
• Factory setting interval flush: 3 h
• Factory setting Flush volume per day and solenoid valve max.: 40 litres
• Flush interval min.: 24 h
• Material: Steel
• Height adjustable: No

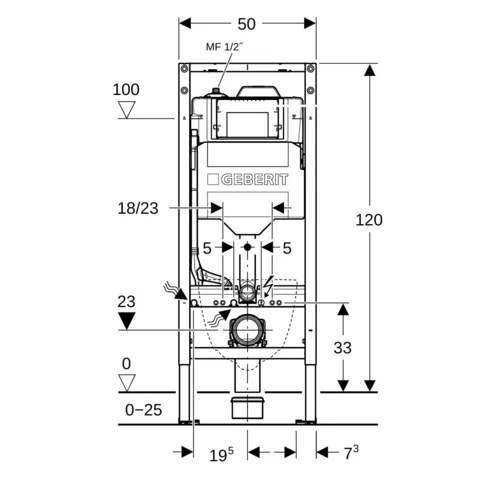

• Dimensions (WxDxH): 50 x 12 x 120 cm

Scope of delivery

• Construction protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection bend made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Solenoid valve unit with safety pin and flow limiter
• Control unit
• Fastening and protective material
