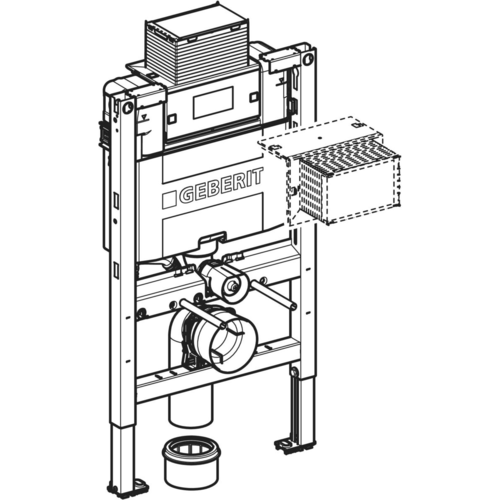

Geberit Duofix element for wall-hung toilet, 82cm, with Omega concealed cistern 12cm

• Geberit Duofix
• 1 x element for wall-hung toilet, 82 cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and suitable for installation in part-height pre-walls

Product details

• self-supporting frame, corrosion-protected by powder coating
• with connection dimensions in accordance with DIN EN33

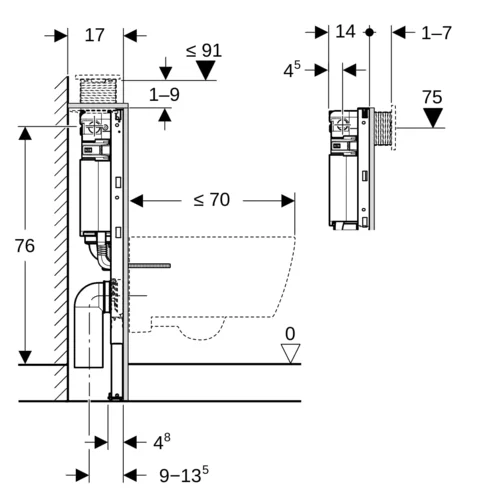

• Projection up to 70 cm
• Frame with drill holes (diameter 9 m) for fastening in timber stud construction
• Swivelling base plates
• Suitable for installation in U profiles UW 50 and UW 75
• Foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Connection elbow can be mounted without tools at various depths (adjustment range: 45 mm)
• Omega concealed cistern 12 cm, condensation-insulated
• Suitable for dual flush
• For actuation from above or from the front
• Immediate flushing possible (with factory setting)
• tool-free installation and maintenance work on the concealed cistern
• Water connection on the left side or left rear
• Construction protection for service opening can be cut to length - protects against moisture and dirt
• with empty pipe for water supply line for Geberit AquaClean Shower WCs and for connection cable
• Fastening option for electrical connection and Power & Connect Box

Technical specifications

• flow pressure: 10 - 1000 kPa
• Max. water temperature: 25°C
• Flush volume (factory setting): 6 / 3 litres
• Large flush volume setting range: 4 / 4.5 / 6 / 7.5 litres
• Setting range for small flush volume: 2 - 4 litres
• flow rate at 3 bar: 0.16 l/s.
• Material: Steel
• Height adjustable: No

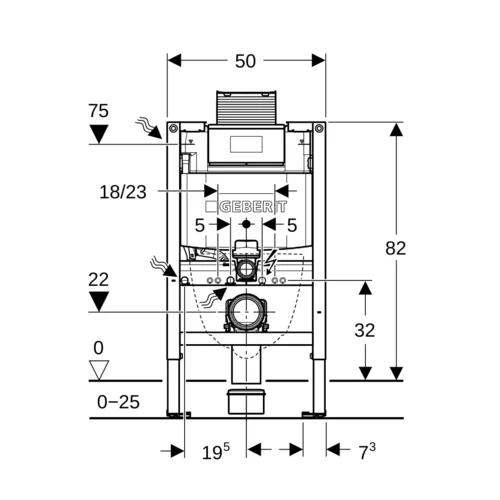

• Dimensions (WxDxH): 50 x 14 x 82 cm

Scope of delivery

• R 1/2" water connection, MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
• Construction protection for service opening
• Connection set for WC, ø 90 mm
• 90° connection elbow made of PE-HD, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• Fastening and protection material
