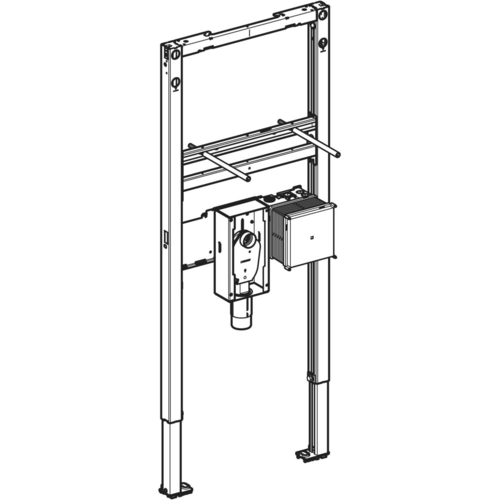

Geberit Duofix element for washbasins, 112cm, electronic stand mixer with concealed function box, with concealed odour trap

• Geberit Duofix
• 1 x element for washbasins, 112cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part and full-height pre-walls, in full-height partition walls
• For the installation of washbasins
• For Piave and Brenta washbasin fittings, free-standing installation, for concealed function box

Product details

• Self-supporting frame, corrosion-protected thanks to powder coating
• With pull-out plate for lateral fastening above the element on metal or wooden profiles
• or to Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Fixing distance washbasins 5 - 38 cm
• Depth-adjustable threaded rods for fixing distance of 18 or 28 cm
• Flush-mounted odour trap with optimum flow control and high self-cleaning capacity
• Flush-mounted odour trap height-adjustable by ± 3 cm for final installation
• Wall installation box with connection pipe made of PP, ø 50 mm
• Water connection MasterFix- and MeplaFix-compatible
• Water connection to flush-mounted housing, bottom
• Fastening for connection elbow, height-adjustable and sound-insulated
• Flush-mounted housing for Geberit washbasin fitting, free-standing, for flush-mounted function box, pre-assembled
• Shut-off units integrated in flush-mounted housing
• Connection terminal for electrical connection in flush-mounted housing

Technical data: Steel

• Material: steel
• Dimensions (WxDxH): 50 x 7.5 x 112 cm

Scope of delivery

• Building protection, building protection with cover (for flush-mounted housing)
• Fastening material
