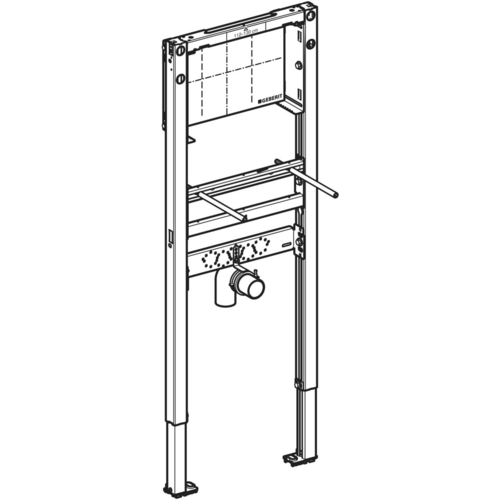

Geberit Duofix element for washbasins, 112cm, narrow version, concealed wall-mounted tap

• Geberit Duofix
• 1 x element for washbasins, 112cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part and full-height pre-walls, in full-height partition walls
• for mounting washbasins, for concealed wall-mounted taps

Product details

• more positioning options for furniture substructure mounting next to element or
• opposite unit with 50 cm width
• Self-supporting frame, corrosion-protected by powder coating
• pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Fixing distance washbasins 5 - 38 cm
• Depth-adjustable threaded rods for fixing distance 18 or 28 cm
• Mounting plate (made of veneer wood, waterproof glued) height and depth adjustable
• Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
• Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936
• Fastening for connecting bend height-adjustable and sound-insulated

Technical data

• Material: steel
• Dimensions (WxDxH): 44 x 11 x 112 - 130 cm

Scope of delivery

• Connection elbow made of PE-HD, ø 50 mm
• Seal ø 44 / 32 mm
• Fastening material
