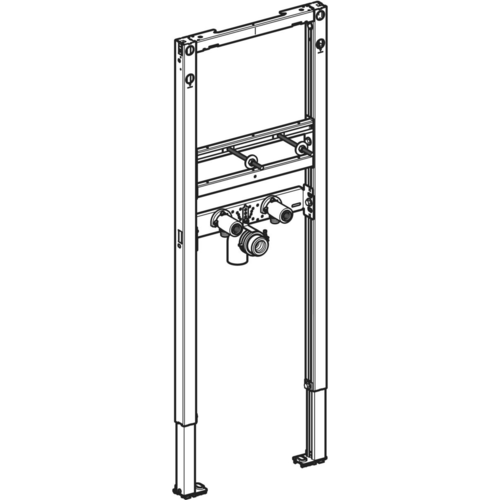

Geberit Duofix element for washbasins, 112cm, narrow version, free-standing mixer tap

• Geberit Duofix
• 1 x element for washbasins, 112cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and for installation in part and full-height pre-walls, in full-height partition walls
• for mounting washbasins, for free-standing taps

Product details

• more positioning options for under-counter furniture mounting next to unit or
• opposite unit with 50 cm width
• Self-supporting frame, corrosion-protected by powder coating
• Pull-out plate for lateral fastening above the element on metal or wooden profiles
• or on Geberit Duofix system uprights
• Alternative fixing position for wall anchors
• Swivelling foot plates, suitable for installation in U profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Fixing distance washbasins 5 - 32 cm
• Depth-adjustable threaded rods for fixing distance 18 or 28 cm
• Height-adjustable and sound-insulated attachment for connecting bend
• Traverse fittings height and depth adjustable

Technical data

• Material: Steel
• Height-adjustable: No
• Dimensions (WxDxH): 44 x 7.5 x 112 cm

Scope of delivery

• 2 connection brackets Rp 1/2" / R 1/2", MF-capable
• 2 sound insulation pads and 2 insulation sleeves
• Connection elbow made of PE-HD, ø 50 mm
• Seal ø 44 / 32 mm
• Fastening material
