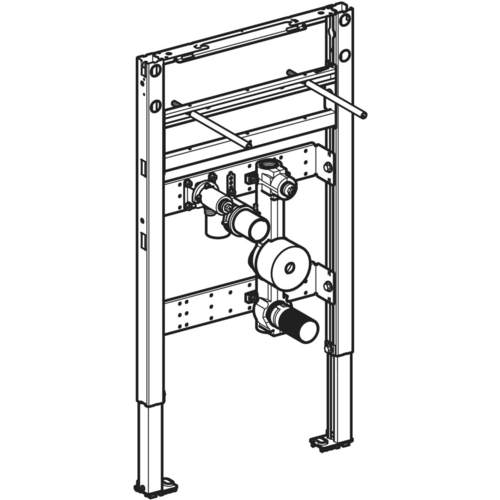

Geberit Duofix element for washbasins, 82-98cm, free-standing tap, 1 water meter section, concealed ball valve and connection T-piece

• Geberit Duofix
• 1 x element for washbasins, 82-98 cm

Intended use

• for metal and wooden stud walls, Geberit Duofix system walls, floor structures 0-25 cm
• and suitable for installation in part-height pre-walls
• for mounting washbasins, for floor-standing taps
• for the installation of measuring capsules with KOAX G 2" thread

Product details

• self-supporting frame, corrosion-protected by powder coating
• Alternative mounting position for wall anchors
• swivelling base plates, suitable for installation in U-profiles UW 50 and UW 75
• foot plates can be mounted in Geberit Duofix system rail without tools
• Foot supports with anti-slip, galvanised, corrosion-protected
• Fixing distance washbasins: 5 - 38 cm
• Depth-adjustable threaded rods for fixing distance 18 or 28 cm
• Height-adjustable attachment for connecting elbow (sound-insulated)
• Traverse fittings height and depth adjustable
• Water meter section (gunmetal, Rp 3/4") installed with sound insulation
• Connection T-piece Rp 1/2" and concealed ball valve Rp 3/4"
• Upper part replaceable, EPP insulation
• Protective plug for one-off pressure test with cold water up to max. 15 bar / 1500 kPa

Technical data: Steel

• Material: steel
• Dimensions (WxDxH): 50 x 12.5 x 82 - 98 cm

Scope of delivery

• Connection elbow made of PE-HD, ø 50 mm,
• Seal ø 44 / 32 mm
• Fastening and protective material
