Geberit Duofix mounting plate for washbasin, with vanity unit, two washbasin fittings

• Geberit Duofix
• 1 x mounting plate for washbasins

Intended use

• for drywall construction
• for installation in part- and full-height pre-wall installations, in full-height installation walls
• and in partial or room-height Geberit Duofix system walls
• for fixing between 2 Geberit Duofix elements for washbasins and uprights
• for fixing washbasins with vanity unit
• for use with 2 outlet taps

Product details

• width matched to Geberit ONE washbasins with vanity units
• width matched to Geberit Duofix element fastening traverses for upright spacing from 60 cm (120-135 cm)
• Mounting plate can be cut to fit the element width and position
• Can be divided into two smaller mounting plates
• Material: veneer lumber (waterproof glued)
• Building material class B2 according to DIN 4102-1, or class D-s2, d0 according to EN 13501-3
• Formaldehyde emission class A according to EN 1084, or class E 1 according to EN 13936

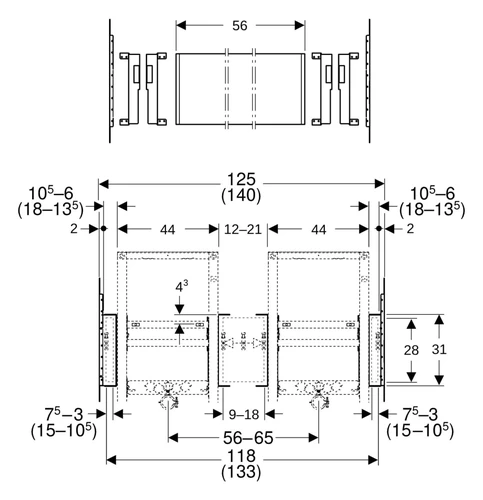

• Dimensions (WxDxH): 56 x 3 x 31 cm
• Nominal width: 120 - 135 cm
• Not height-adjustable

Scope of delivery

• Mounting plate, 6 mounting brackets and fastening material
• NOT included in the scope of delivery: fixing material for washbasins (if the positions of the fixing screws are on the mounting plates)
