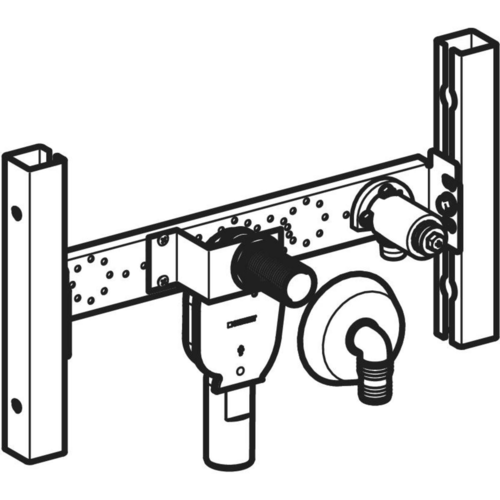

Geberit Duofix traverse element for washing machine, wall-mounted tap, with concealed trap

• Geberit Duofix
• 1 x traverse element
• for washing machine, surface-mounted wall fitting
• with concealed siphon

Intended use

• For metal and timber stud walls
• For installation in room-height pre-walls, in room-height partition walls
• For tumble dryers, washing machines or washdown toilets

Product details

• Powder-coated frame
• Height and depth-adjustable crossbar
• Self-adhesive, fleece-coated sealing disc
• Protective plug for one-off pressure test with cold water up to max. 15 bar / 1500 kPa
• Material: steel
• Dimensions (WxDxH): 50 x 6 x 28 cm

Scope of delivery

• Connection bracket Rp 1/2" / R 1/2", MF-capable
• Sealing disc and sound insulation pad
• Insulation sleeves
• UP odour trap with ready-to-install set
• Protective plugs
• Fastening material
