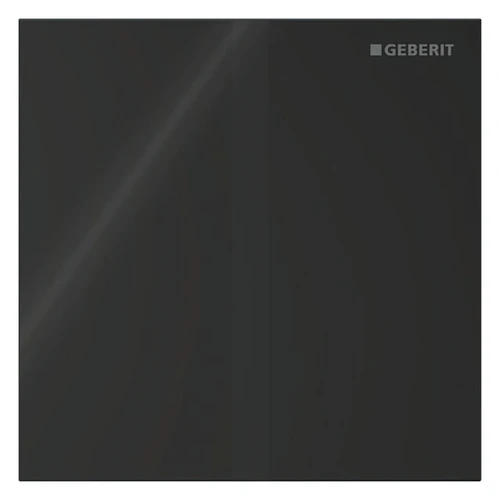

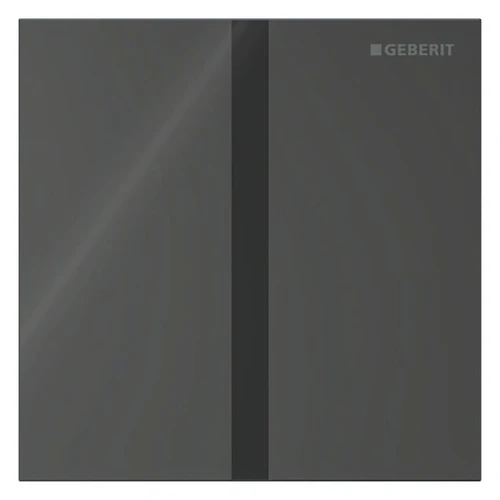

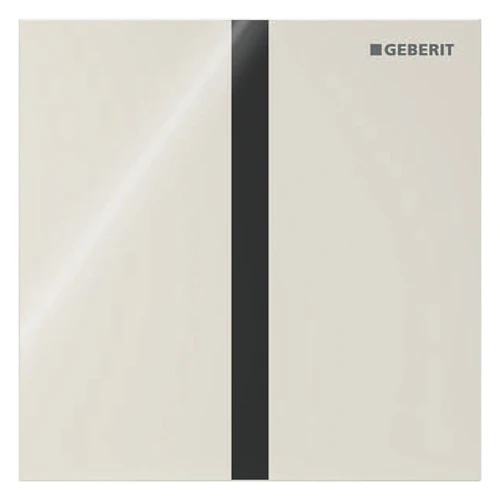

Geberit urinal flush control, type 40 cover plate, with electronic flush actuation, mains operation, square, glass

• Geberit
• 1 x urinal flush control
• with electronic flush actuation
• Mains operation

Product details

• for automatic flush actuation of urinals
• for Geberit mounting elements for urinals with actuation from the front
• for installation in shell sets for Geberit urinal flush controls (from year of manufacture 2009)
• Type 40 cover plate with safety catch
• Safe IR distance detection
• Self-adjusting IR sensor
• Infrared user detection with background suppression
• Adjustable water-saving hybrid mode
• Adjustable flush time and interval flush
• DYNAmic flush time adjustment
• Adjustable pre-rinse
• Can be switched to operation with lid urinal
• Power supply via mains connection
• Ready for operation after mains connection
• Power supply unit with LED display, power failure control
• Valve closure function in the event of power failure
• One-off flush after activating the power supply
• Functions can be set and queried with Geberit Service mobile phone
• Device settings and operation with mobile device via integrated Bluetooth® interface
• Compatible with Geberit Control App and Geberit Connect
• Can be networked wirelessly with Geberit Gateway via GEBUS converter
• Can be networked wirelessly with Geberit Gateway via Bluetooth®
• Flush release can be deactivated
• Flush volume can be reduced to 0.5 litres per flush using the throttle screw of the pipework set
• Fitting group II according to DIN 4109
• Material: glass

Technical data

• Protection class: IP45
• Rated voltage: 110-240 V AC
• Operating voltage: 4.5 V DC
• Mains frequency: 50-60 Hz
• flow pressure: 100-800 kPa
• Test pressure water max.: 1600 kPa
• Test pressure air / inert gas max.: 300 kPa
• Max. water temperature: 30 °C
• flow rate at 1 bar (without flow limiter): 0.3 l/s.
• flow rate at 1 kPa (without flow limiter): 0.18 l/s.
• Minimum flow pressure for calculation flow rate: 100 kPa
• rel. Humidity: ≤ 100 %
• Calculation flow rate: 0.23 l/s.
• Interval flush Setting range: 1-168 h
• Interval flush Factory setting: 24 h
• Interval flush time Setting range: 3-180 s
• Interval flush time Factory setting: 5 s
• Dwell time Setting range: 3-15 s
• Dwell time Factory setting: 7 s
• Flush time Setting range: 1-15 s
• Flush time Factory setting: 7 s
• Power consumption: ≤ 0.5 watts
• Button shape: square

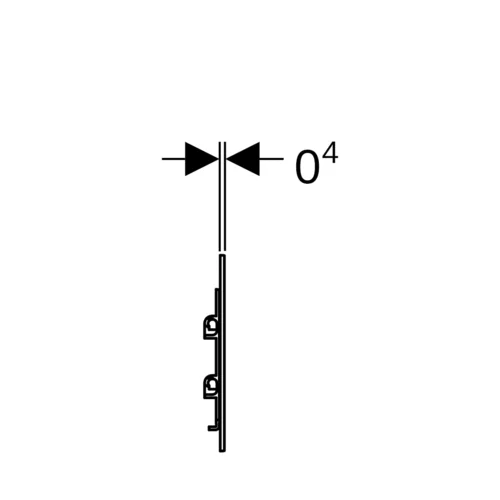

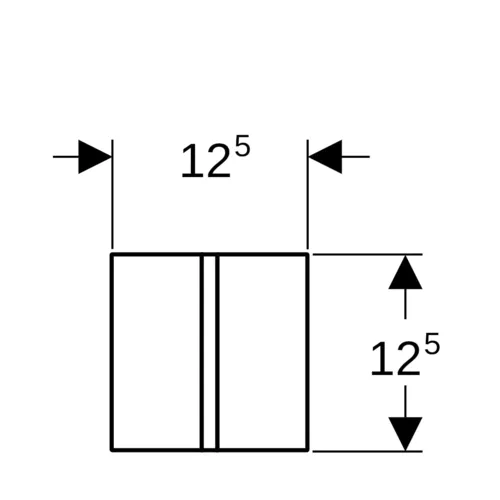

• Dimensions (WxDxH): 12.5 x 0.2 x 12.5 cm

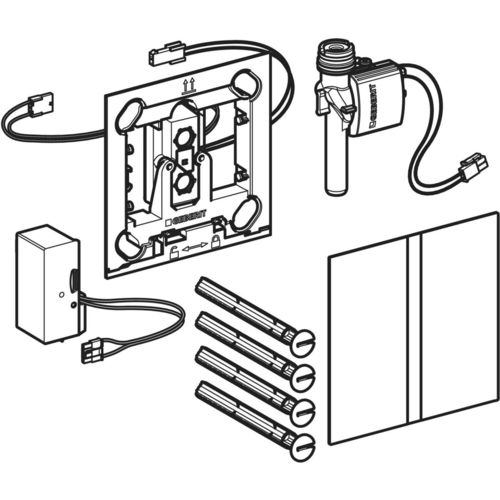

Scope of delivery

• Type 40 cover plate, square IR window
• Mounting frame
• Infrared control, pre-assembled on mounting frame
• Solenoid valve, power supply unit and fixing material
